DISASSEMBLY AND REASSEMBLY (3.0 L Engine): Notes

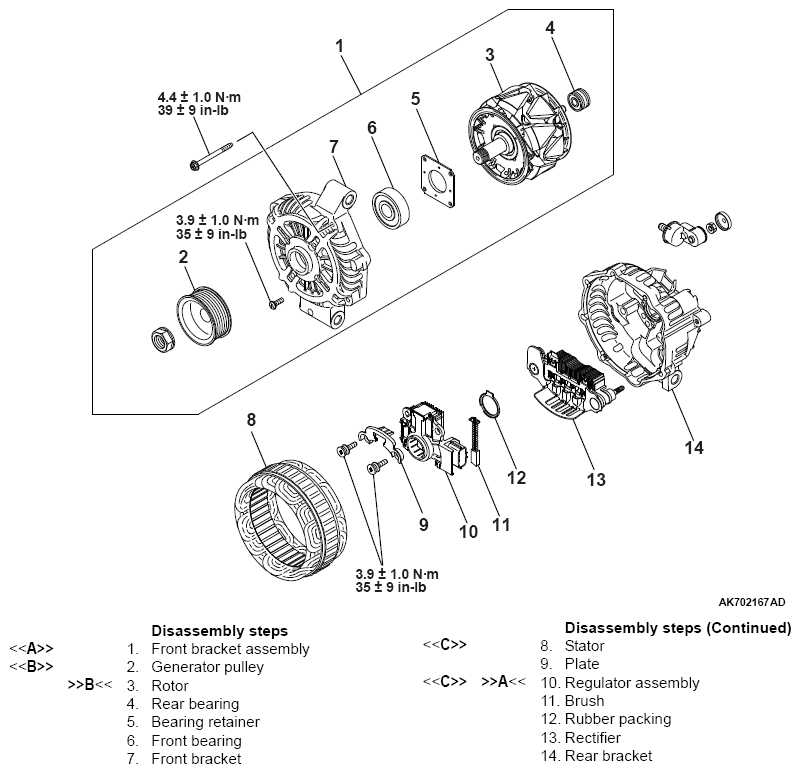

Fig 1: Disassembling/Assembling Engine Electrical Charging System Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
