Component Locations -- Outlander: Sensor

Name	Symbol	Name	Symbol
A/C pressure sensor	J	Left bank linear air-fuel ratio sensor <3.0L Engine>	R
Accelerator pedal position sensor	U	Liftgate sensor <Vehicles with power liftgate>	W
Ambient air temperature sensor	N	Lighting control sensor <Vehicles with rain sensitive AUTO wiper without lane departure warning system>	f
Battery current sensor <2.4L engine>	I	Linear air-fuel ratio sensor <2.4L Engine>	C
Brake booster vacuum sensor <2.4L Engine>	H	Manifold absolute pressure sensor	K
Camshaft position sensor	B	Mass airflow sensor	G
Crankshaft position sensor	D	Occupant classification sensor	b
Engine coolant temperature sensor	E	Output shaft speed sensor <3.0L Engine>	i
Fin thermo sensor	V	Primary pulley speed sensor <2.4L Engine>	h
Front impact sensor	O	Rear light sensor <Vehicles with automatic anti-dazzling mirror>	f
Front light sensor <Vehicles with automatic anti-dazzling mirror>	f	Rear wheel speed sensor	Y
Front wheel speed sensor	c	Right bank heated oxygen sensor (rear) <3.0L Engine>	e
Fuel level sensor (sub) <AWD>	Z	Right bank knock sensor <3.0L Engine>	P
Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor)	m	Right bank linear air-fuel ratio sensor <3.0L Engine>	e
Fuel tank differential pressure switch (incorporating fuel tank differential pressure sensor)	m	Seat slide sensor	k
		Secondary pulley speed sensor <2.4L Engine>	i
Heated oxygen sensor (rear) <2.4L Engine>	j	Side impact sensor (front)	a
Input shaft speed sensor <3.0L Engine>	Q	Side impact sensor (rear)	X
Interior temperature sensor	T	Steering wheel sensor	S
Knock sensor <2.4L Engine>	L	Throttle body assembly (incorporating throttle position sensor)	M
LDW-ECU (incorporating lighting control sensor)	f	Turbine speed sensor <2.4L Engine>	g
Left bank heated oxygen sensor (rear) <3.0L Engine>	d	Variable valve lift control motor (incorporating sensor) <2.4L Engine>	A
Left bank knock sensor <3.0L Engine>	P	Variable valve lift sensor <2.4L Engine>	F

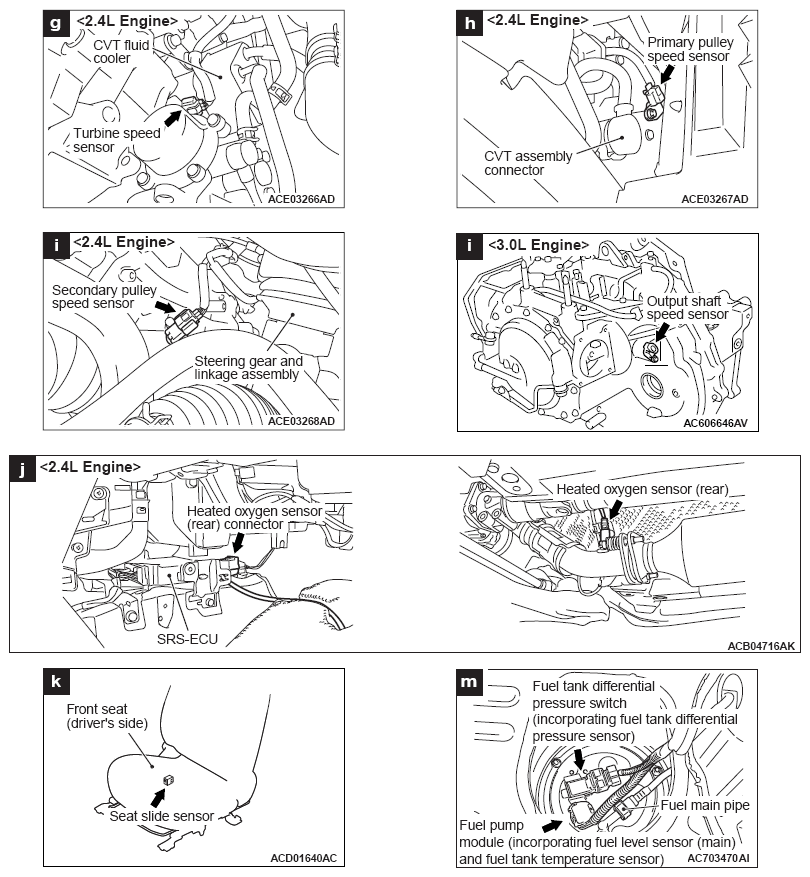

Fig 1: Sensor Locations (1 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The * symbols indicate equipment at both sides.

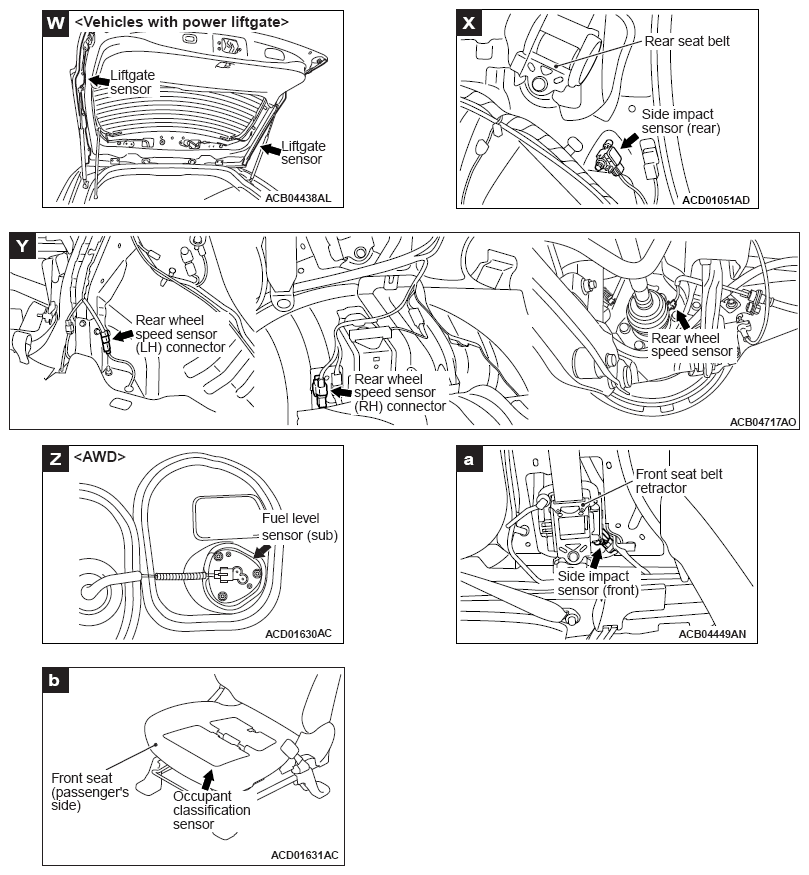

Fig 2: Sensor Locations (2 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

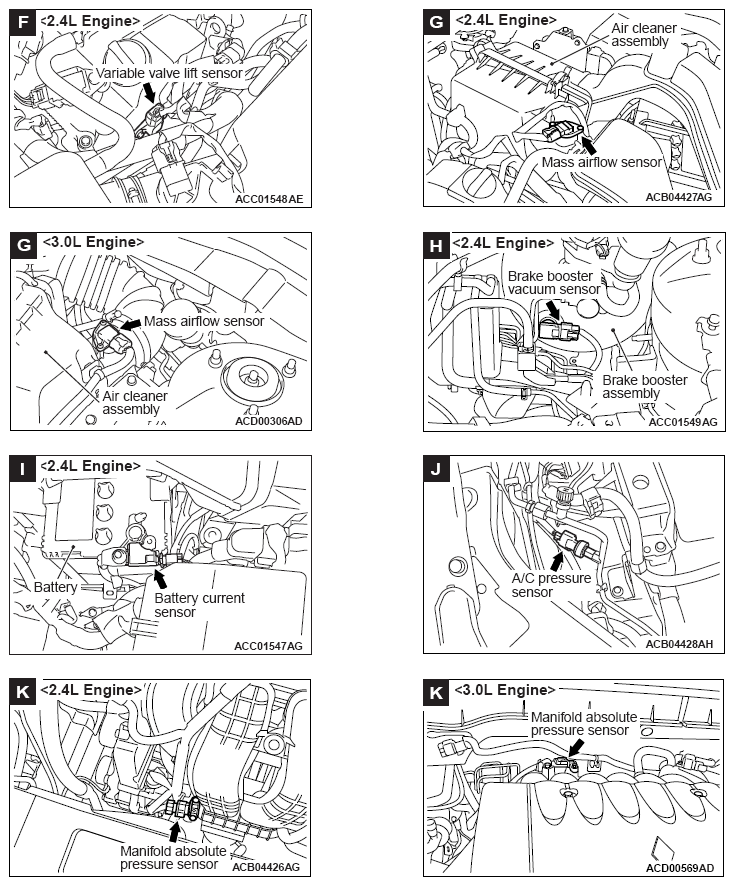

Fig 3: Sensor Locations (3 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

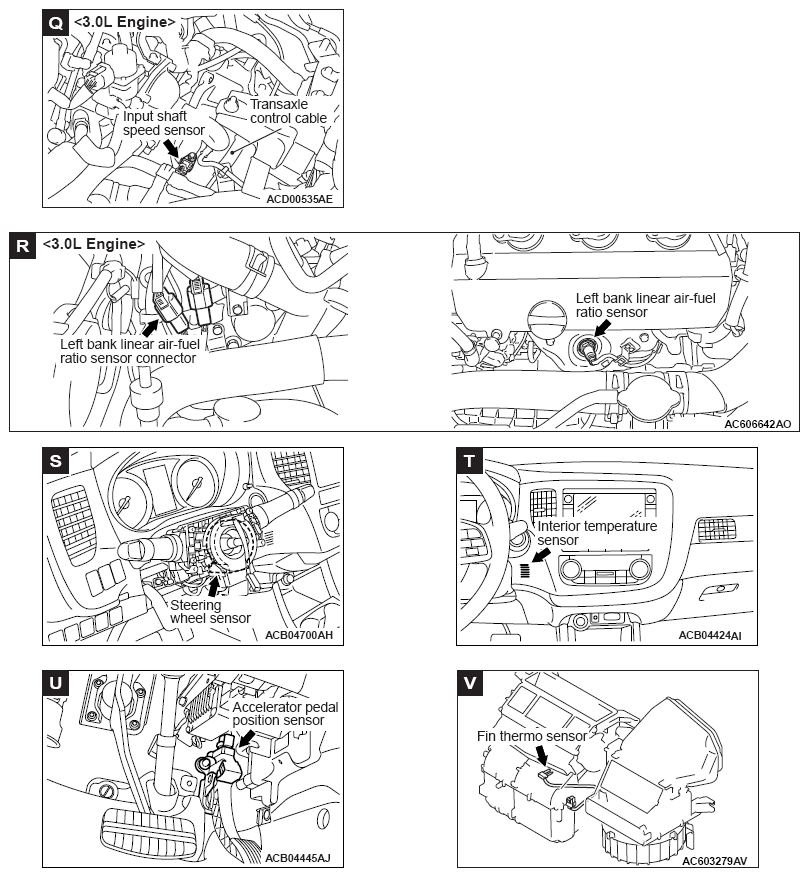

Fig 4: Sensor Locations (4 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

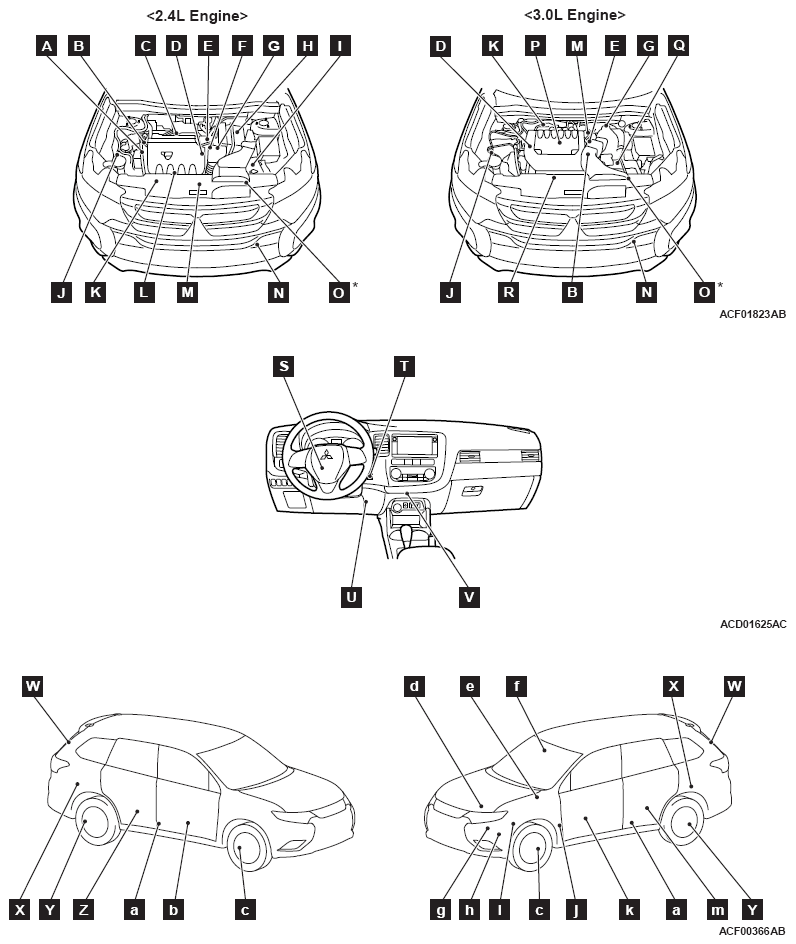

Fig 5: Sensor Locations (5 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

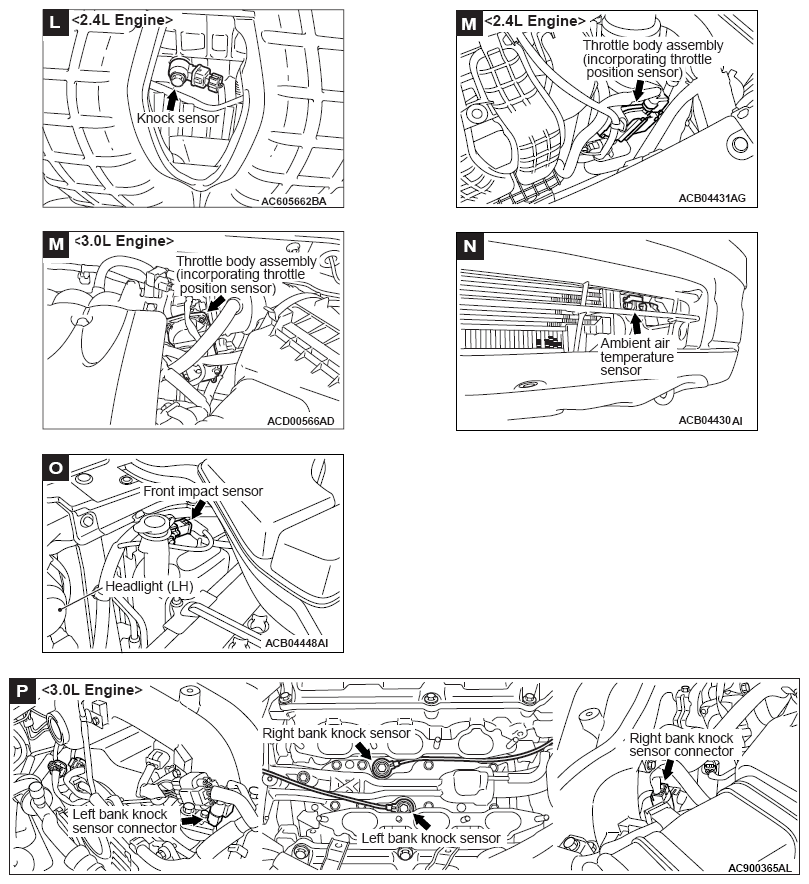

Fig 6: Sensor Locations (6 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

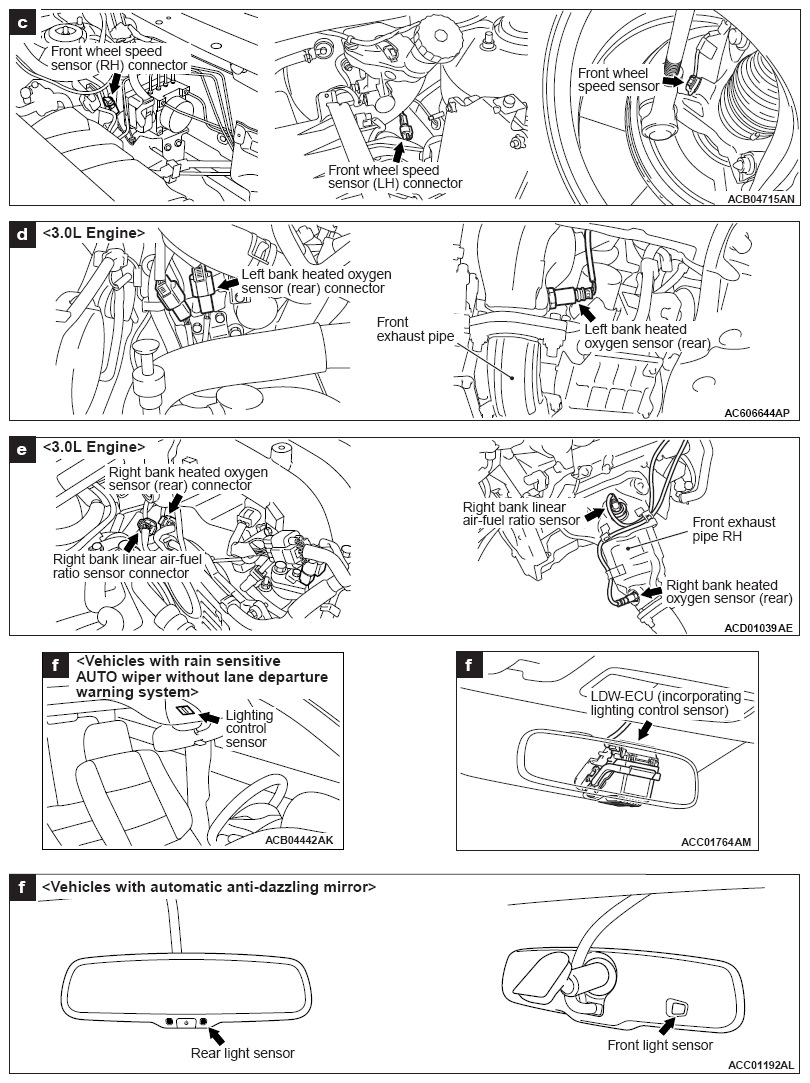

Fig 7: Sensor Locations (7 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

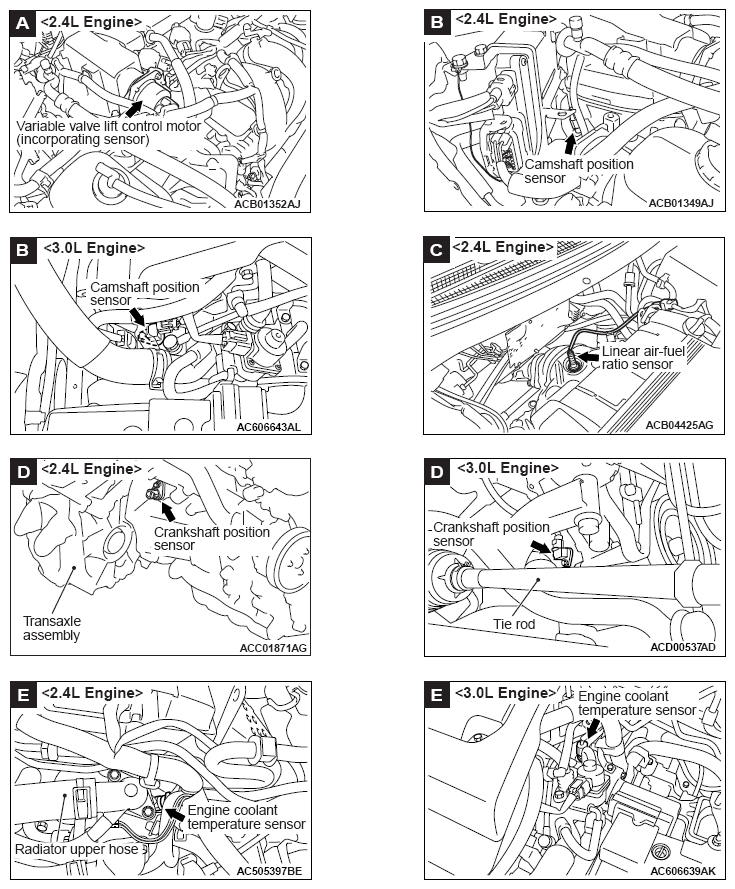

Fig 8: Sensor Locations (8 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
