Component Locations -- Outlander: Relay

Name	Symbol	Name	Symbol
A/C compressor relay	A	Horn relay	A
A/T control relay <3.0L Engine>	A	MFI relay	A
Blower relay	B	Radiator fan relay	A
Condenser fan relay	A	Selector lever assembly (incorporating key lock relay) <Vehicles without KOS>	C
Daytime running light relay	A	Starter relay	A
Fan control relay	A	Theft-alarm horn relay	A
Front fog light relay	A	Throttle actuator control motor relay	A
Headlight relay (HI)	A	Variable valve lift control relay <2.4L Engine>	A
Headlight relay (LO)	A	Wiper deicer relay	A
Heated seat relay	B

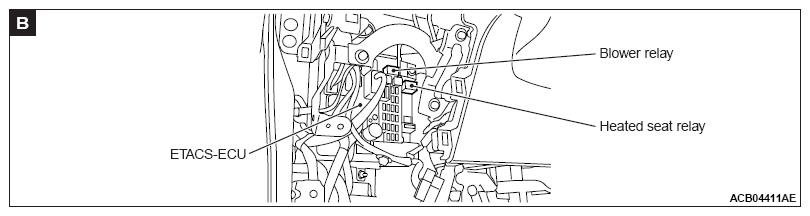

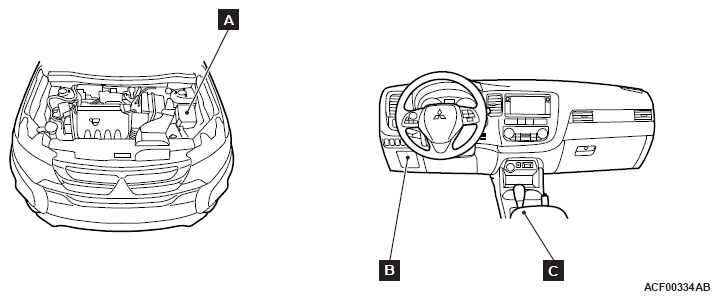

Fig 1: Relay Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

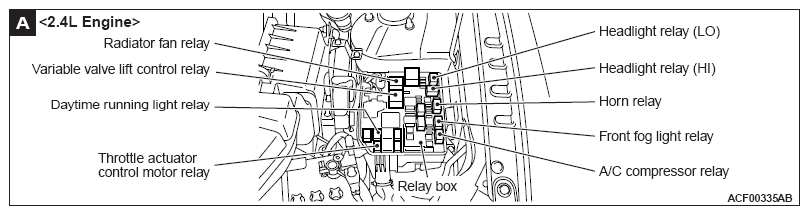

Fig 2: Relay Locations - 2.4L Engine (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

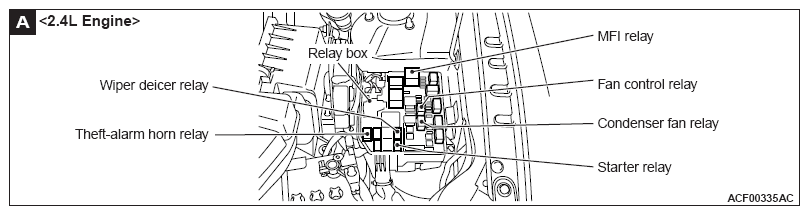

Fig 3: Relay Locations - 2.4L Engine (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

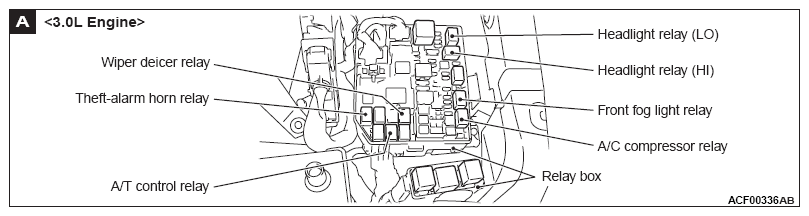

Fig 4: Relay Locations - 3.0L Engine (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

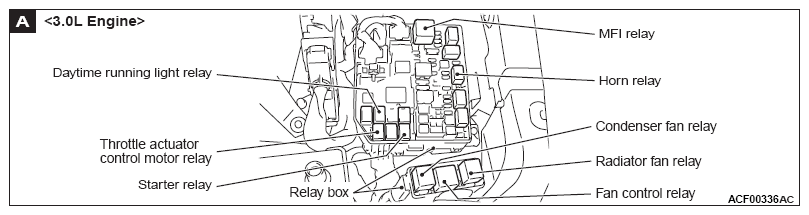

Fig 5: Relay Locations - 3.0L Engine (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Relay Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Locating Selector Lever Assembly (Incorporating Key Lock Relay) - Vehicles Without Kos

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
