Component Locations -- Outlander: Grounding

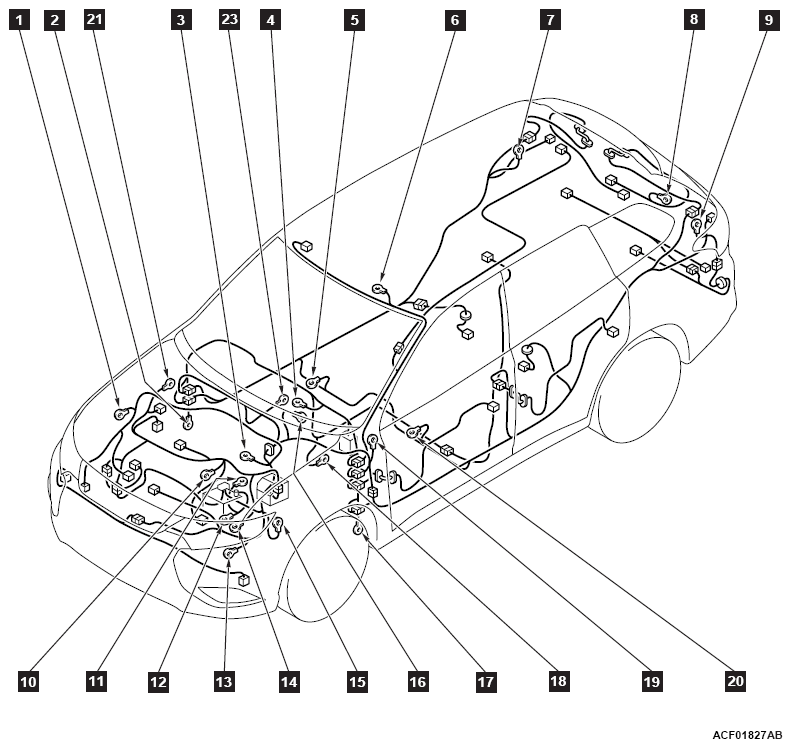

Fig 1: Grounding Location (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 23 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

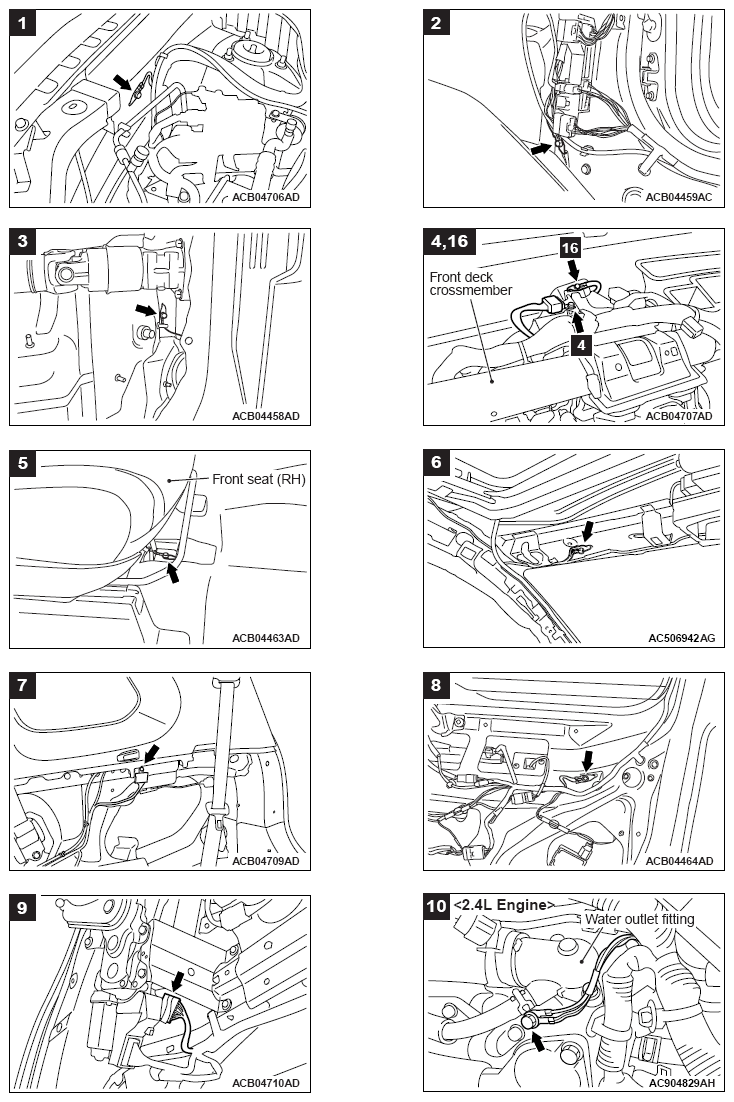

Fig 2: Grounding Location (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

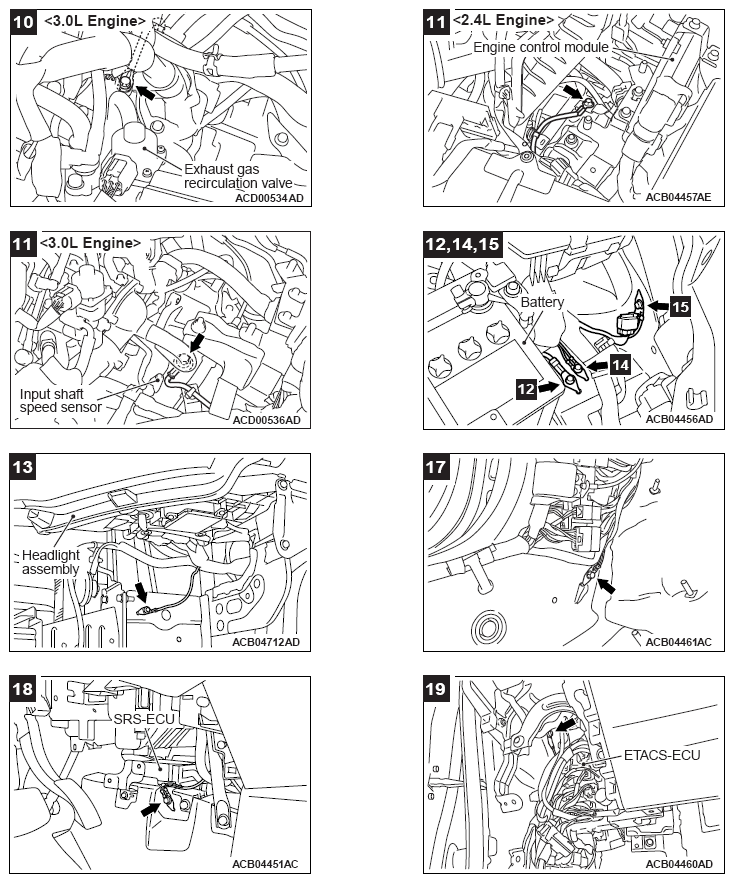

Fig 3: Grounding Location (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

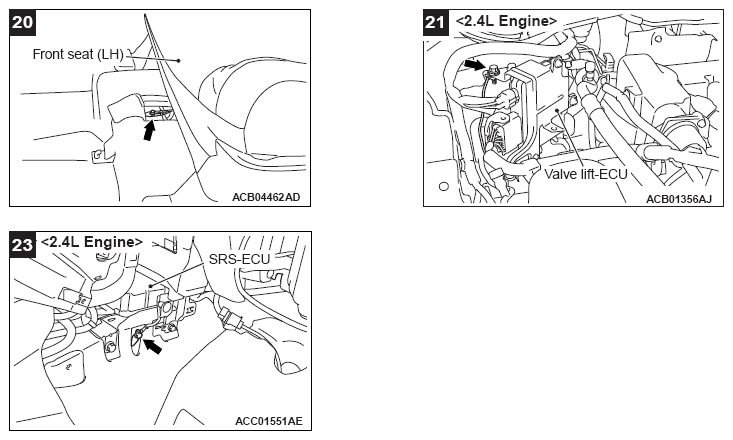

Fig 4: Grounding Location (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
