Disassembly And Reassembly (Fwd): Notes

CAUTION: As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassembled.

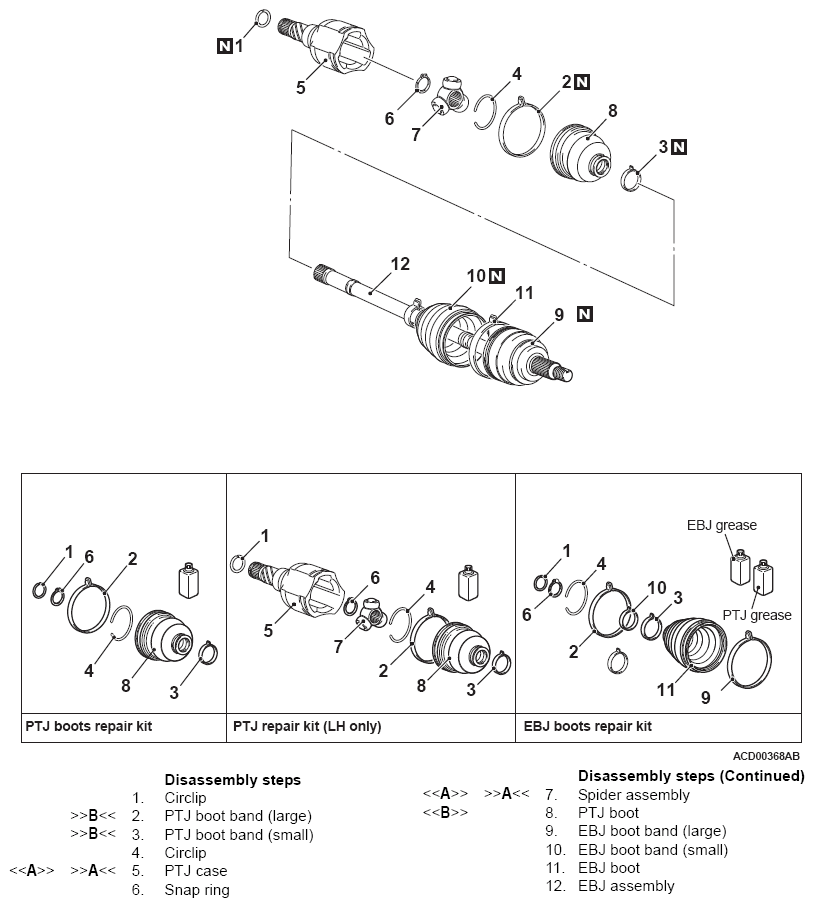

Fig 1: Exploded View Of Driveshaft Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

PTJ: Pillow Tripod Joint
EBJ: High Efficiency Compact Birfield Joint
The PTJ repair kit is supplied for only the left side. (A repair kit for the right side is not available).

LUBRICATION POINTS

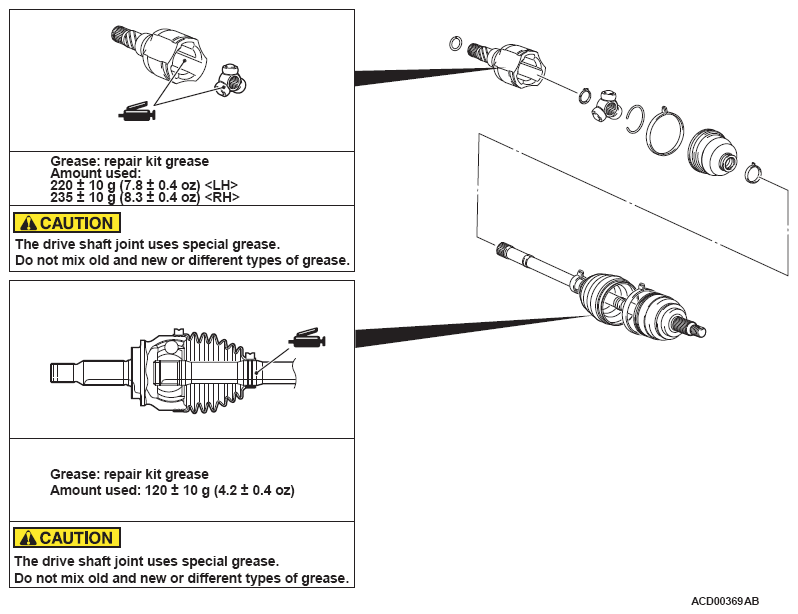

Fig 2: Identifying Lubrication Applying Area On High Efficiency Compact Birfield Joint

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
