Windshield Spacer/Glass Stopper Installation

CAUTION: Before the next operation, leave the decreased parts for 3 minutes or more to dry. Do not touch the coated surface.
  1. Use parts cleaner (3M™ AAD Part number 8906 or equivalent) to degrease the inside circumference of the windshield glass and the body flanges.

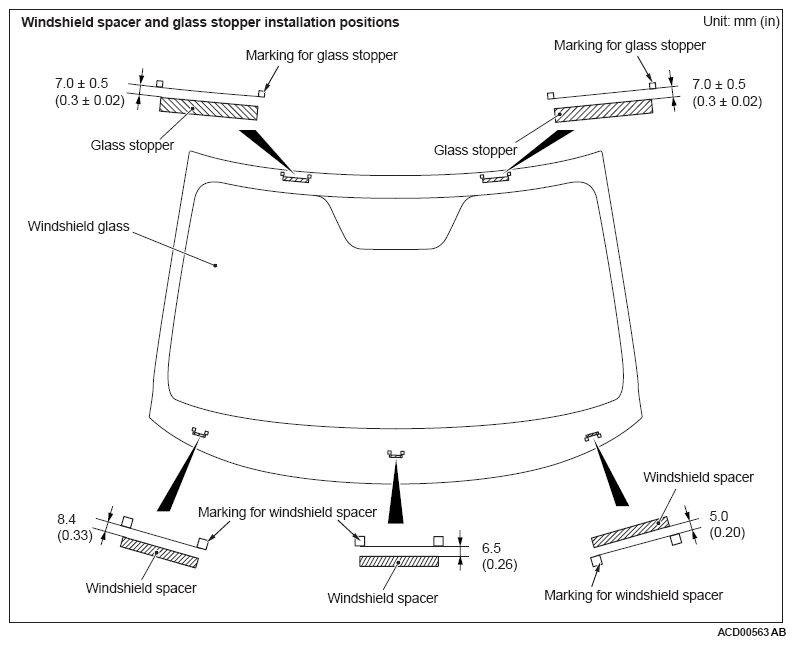

    Fig 1: Identifying Windshield Spacer And Glass Stopper Installation Positions
    G10224646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Position the windshield spacer, ensuring that there are no bends or looseness inside the windshield glass.
  3. Secure the glass stoppers to the specified positions on the windshield glass.
