Door Latch Assembly Inspection: Notes

Check the door lock actuator operation in the following procedures:

1. Open a door that is supposed to be checked.
2. Remove a door trim assembly (Refer to GROUP 52A - DOOR TRIM ).
3. Use a screwdriver or the like to slide the door latch claw from unlatch to full-latch position (Set the door latch from door-open to door-closed condition).

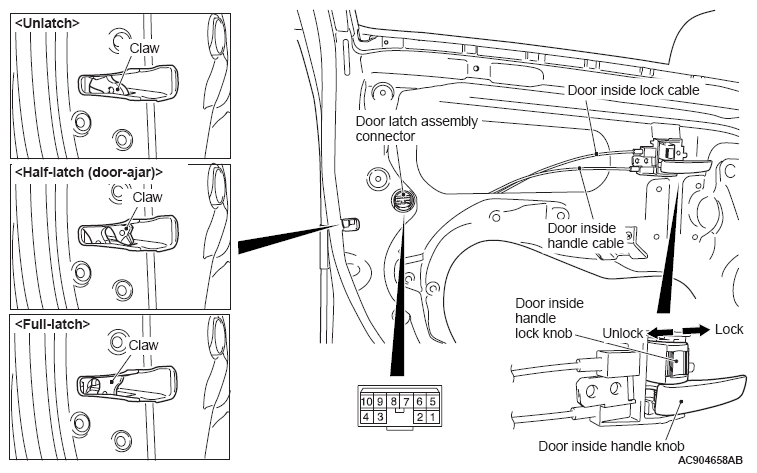

   Fig 1: Inspecting Door Latch Assembly

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
