Multivision display

Pre-removal and Post-installation Operation

Instrument Center Panel Removal and Installation (Refer to INSTRUMENT CENTER PANEL ).

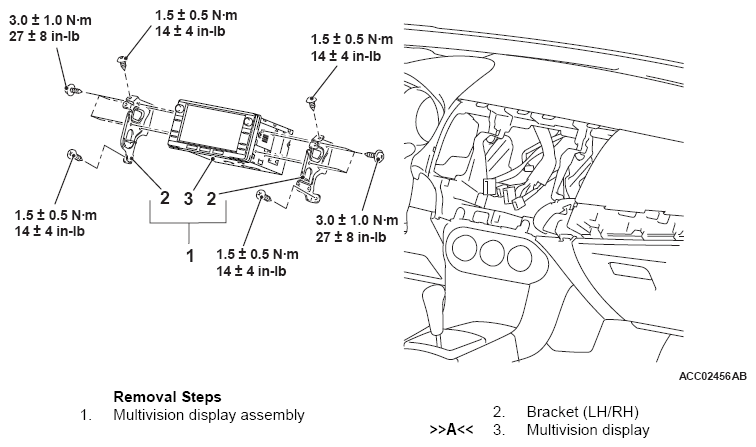

Fig 1: Removing/Installing Multivision Display
G11742462Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
