Installation Service Point

>>A<< MULTIVISION DISPLAY

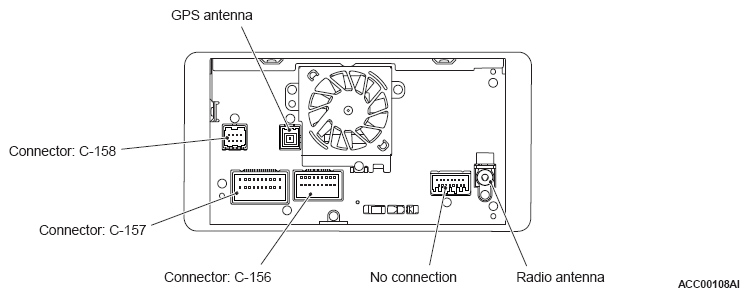

Fig 1: Locating Connectors Of Multivision Display
G11742464Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The connectors, antenna and cables connected to the multivision display are shown in the figure above.
