Monitor Check

Select "Monitor Check" button on "Monitor Adjustment" screen.

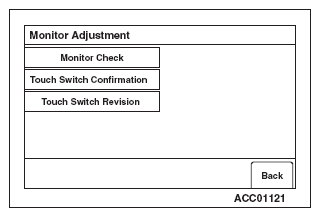

Fig 1: MMCS Screen Display - Monitor Adjustment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
16-gradient grayscale pattern are displayed.

Fig 2: MMCS Screen Display - 16-Gradient Grayscale Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
By touching the grayscale screen, it will be switched to a full-scale white screen.

Fig 3: MMCS Screen Display - Full-Scale White Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
By touching the full-scale white screen, it will be switched to a eight color bars.

Fig 4: MMCS Screen Display - Eight Color Bars
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
By touching the eight color bars, it will be switched to a cross-hatch pattern. (Check whether the full-scale red frame is not misaligned)

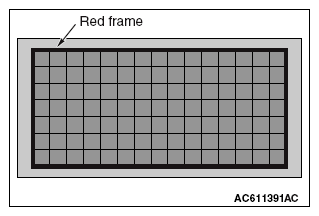

Fig 5: MMCS Screen Display - Cross-Hatch Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
By touching the cross-hatch screen, it will be switched to a monocolor vertical stripe screen.

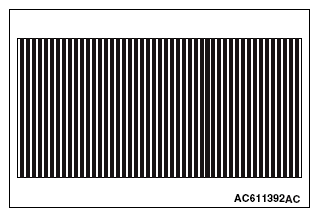

Fig 6: MMCS Screen Display - Monocolor Vertical Stripe Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
By touching the monocolor vertical stripe screen, it will be switched to a full-scale black screen.

Fig 7: MMCS Screen Display - Full-Scale Black Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
By touching the full-scale black screen, it will be switched to a full-scale red screen.

Fig 8: MMCS Screen Display - Full-Scale Red Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
By touching the full-scale red screen, it will be switched to a full-scale green screen.

Fig 9: MMCS Screen Display - Full-Scale Green Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
By touching the full-scale green screen, it will be switched to a full-scale blue screen.
By touching the full-scale blue screen, it will be switched back to "Monitor Adjustment" screen.

Fig 10: MMCS Screen Display - Full-Scale Blue Screen

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
