Removal And Installation: Notes

CAUTION:
  • When removing or installing the mass airflow sensor, be careful not to apply impact to the sensor.
  • Do not reuse the mass airflow sensor that has been dropped.

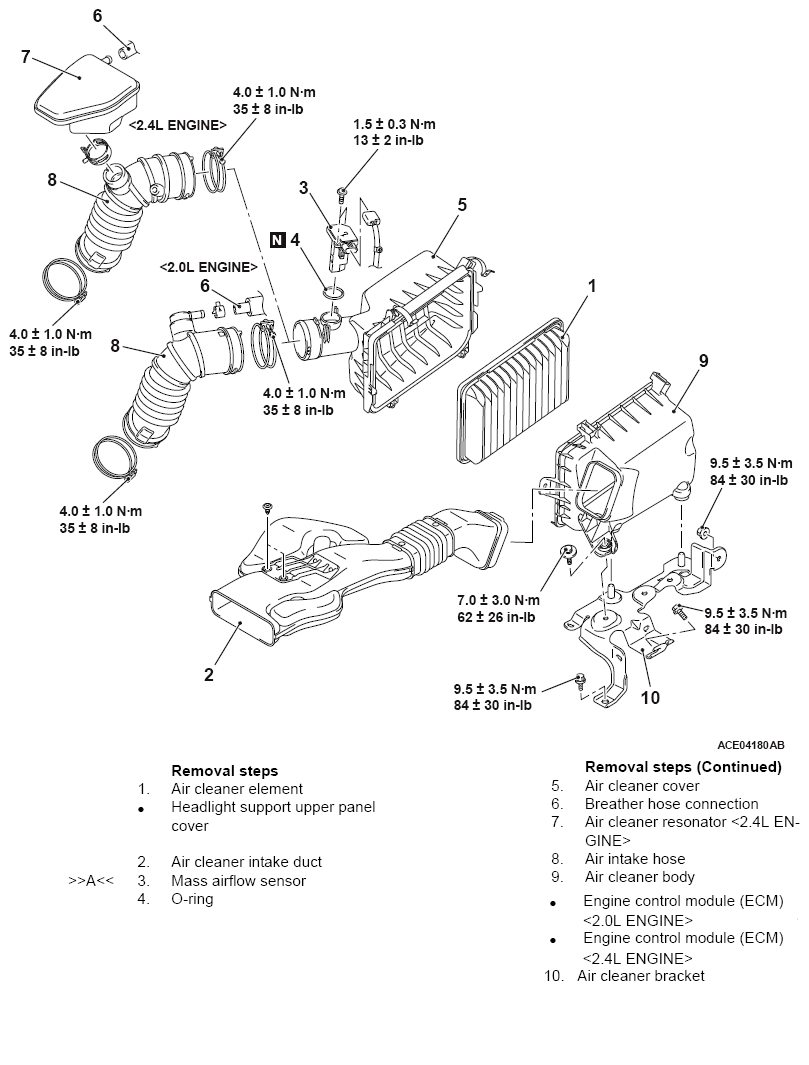

Fig 1: Exploded View Of Air Cleaner With Tightening Torque
G10229612Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
