Generator Installation

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily tighten generator bolt and nut.
  2. First tighten the upper mounting bolt to the specified torque, and then tighten the lower nut.

    Specified torque: 44  ± 10 N.m

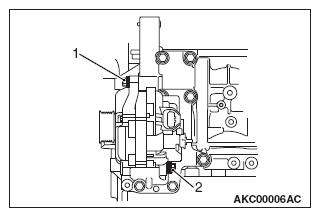

    Fig 1: Installing Generator
    G09668174Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
