Removal And Installation (3.0 L Engine): Notes

Pre-removal Operation  Fuel Discharge Prevention [Refer to On-vehicle Service - FUEL PUMP CONNECTOR DISCONNECTION (HOW TO REDUCE PRESSURIZED FUEL LINES) ]. Intake Manifold Plenum Removal (Refer to INTAKE MANIFOLD PLENUM < 3.0L ENGINE >  ).

Post-installation Operation  Intake Manifold Plenum Installation (Refer to INTAKE MANIFOLD PLENUM < 3.0L ENGINE >  ). Fuel Leakage Inspection

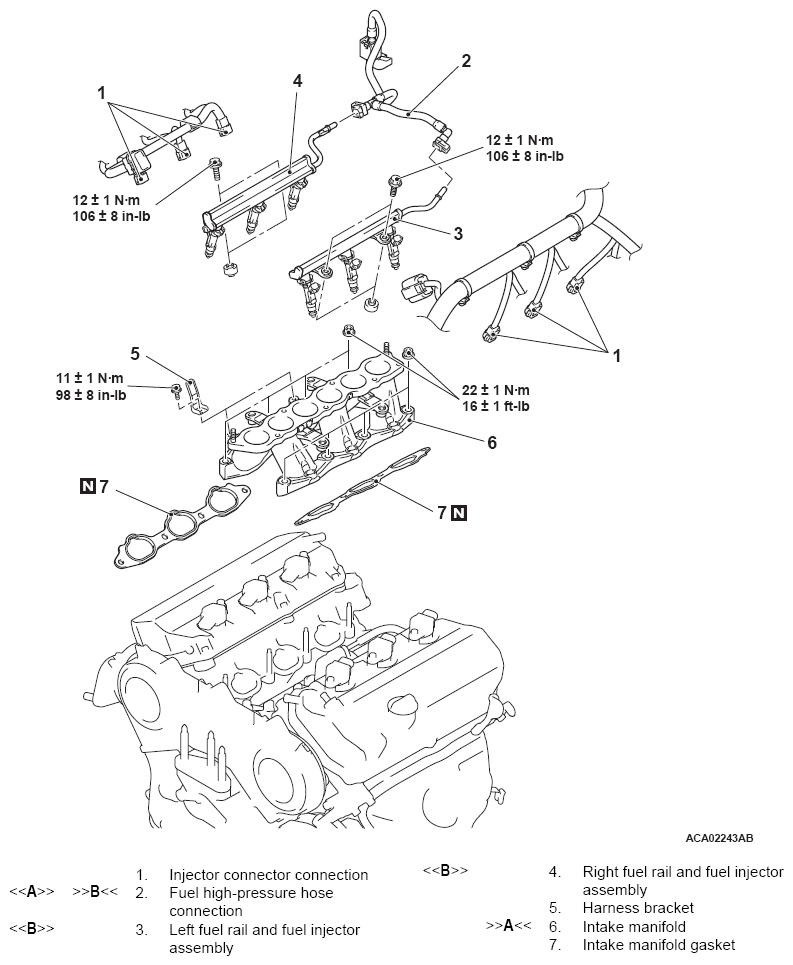

Fig 1: Removing/Installing Intake Manifold With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
