Splice Locations: Liftgate

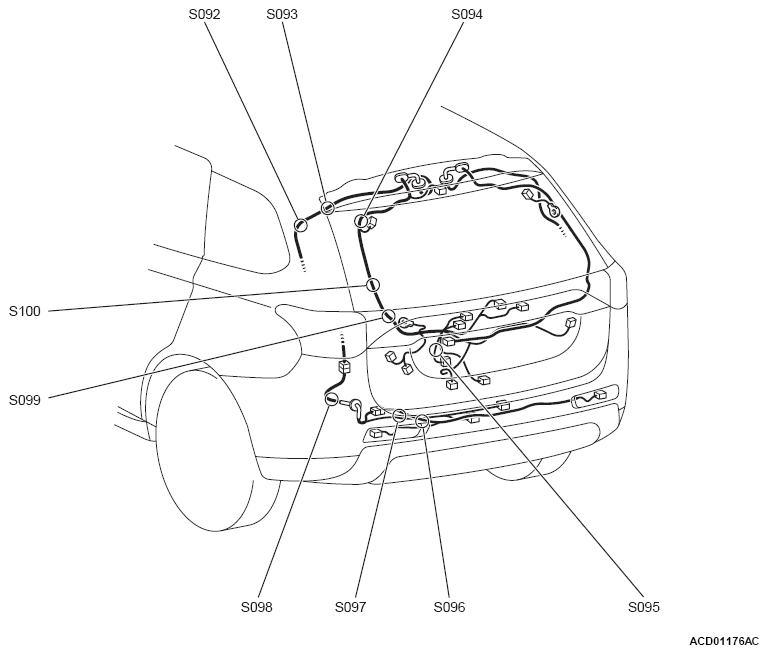

Fig 1: Liftgate Splice Point Numbers Location
G10226153Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
