Removal And Installation

Pre-removal and post-installation operation

• Transmission range switch and control cable adjustment check (Refer to TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT  .)
• Selector lever operation check (Refer to SELECTOR LEVER OPERATION CHECK  .)

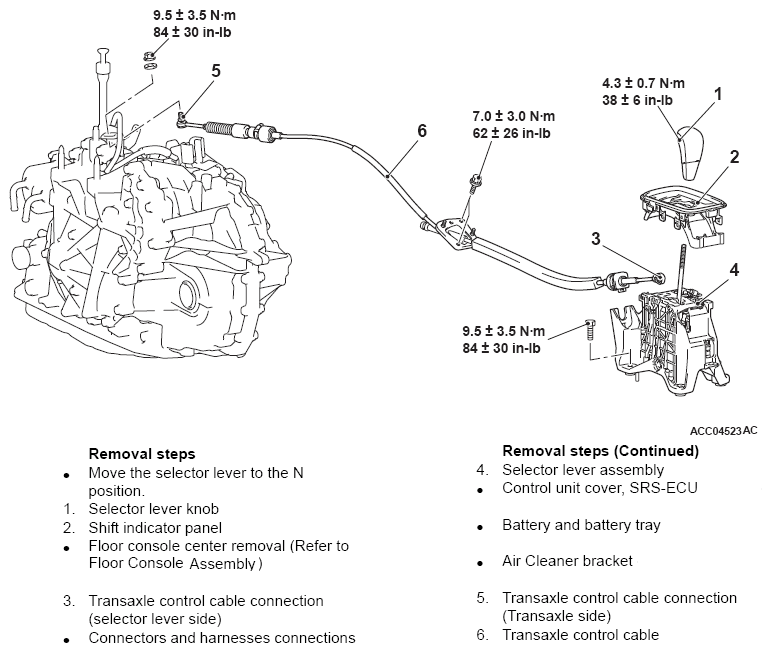

  Fig 1: Removing/Installing Transaxle Control Components With Torque Specification

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
