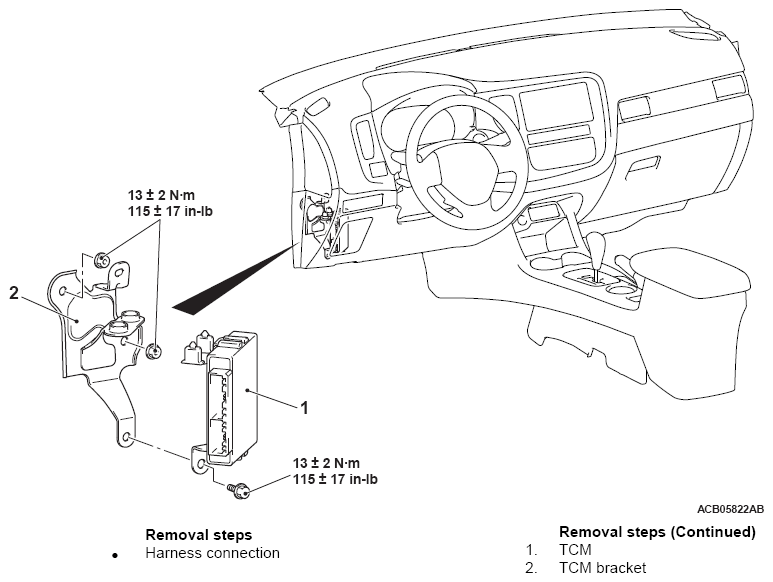

Removal And Installation
CAUTION:
To store the change gear ratio status of the CVT assembly in the TCM memory, drive the vehicle at 3 km/h (1.9 mph) or faster after replacing the TCM.
Pre-removal and post-installation operation
- Bottom cover assembly removal and installation (driver's side) (Refer to INSTRUMENT PANEL ASSEMBLY .)
