- While pressing A in the figure, turn B counterclockwise to unlock the CVT assembly connector, and disconnect the connector.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:

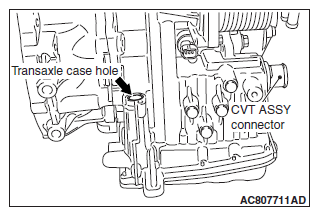

Insert a thermometer which is made of metal or is put in a metal case (overall length: approximately 150 - 200 mm [6.0 - 7.8 inch]) into the transaxle case hole approximately 80 mm (3.1 inch).
- Remove the oil filler tube assembly (Refer to TRANSAXLE ASSEMBLY ), and insert a thermometer into the transaxle case hole.
NOTE:
If a radiation thermometer (noncontact thermometer) is available, use it to measure the surface temperature of the oil pan.
- Measure the resistance between the sensor-side connector terminal No. 17 of the CVT assembly connector and ground (terminal No. 19).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. RESISTANCE REFERENCE
| Fluid temperature °C (°F) |
Resistance kΩ |
| At 0 (32) |
Approximately 15.5 |
| At 20 (68) |
Approximately 6.5 |
| At 40 (104) |
Approximately 3.1 |
| At 60 (140) |
Approximately 1.6 |
| At 80 (176) |
Approximately 0.9 |
| At 100 (212) |
Approximately 0.5 |
CAUTION:
The transmission fluid temperature sensor cannot be removed or replaced as a single unit. When the transmission fluid temperature sensor needs to be replaced, replace the valve body assembly.
- When the resistance of the transmission fluid temperature sensor is outside the standard value, replace the valve body assembly and the harness.
