Differential Sub-Assembly: Assembly: Notes

CAUTION: The differential sub-assembly can only be assembled, not disassembled.

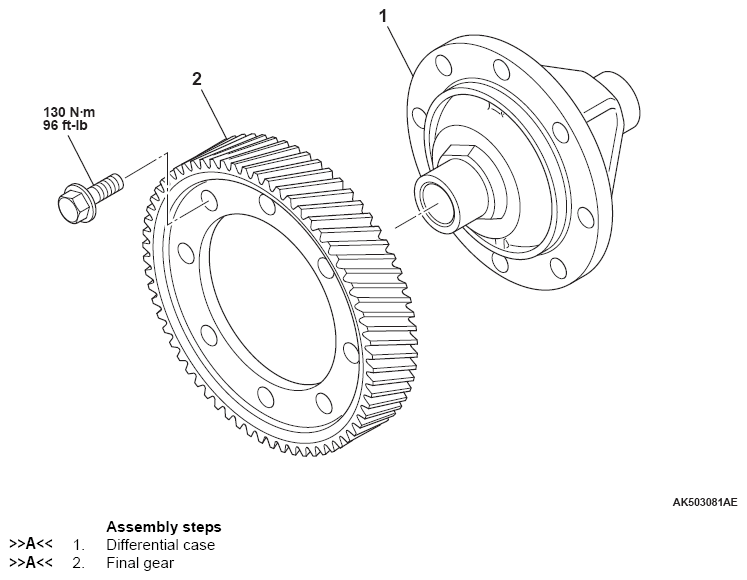

Fig 1: Identifying Differential Sub-Assembly Components With Torque Specification
G10223226Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
