Home >> Mitsubishi >> 2015 >> Mirage RF >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Front Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .

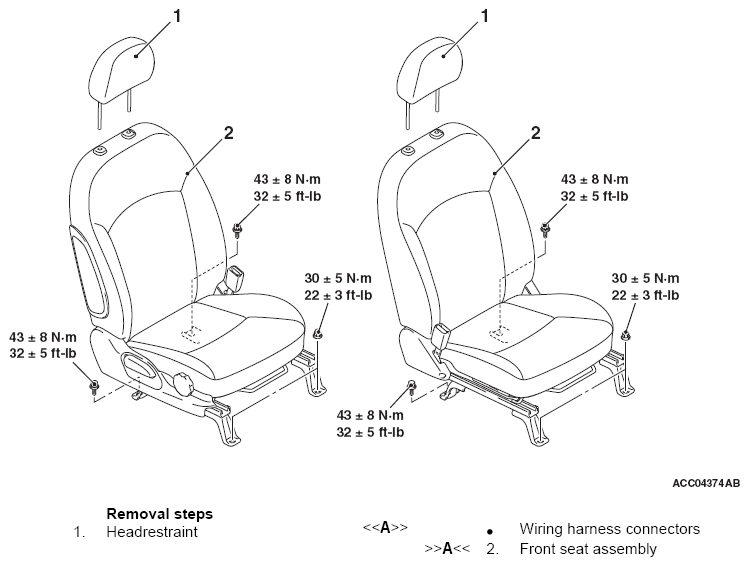

Fig 1: Removing/Installing Front Seat Assembly Components With Torque Specifications
G09632518Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
