Home >> Mitsubishi >> 2015 >> Mirage RF >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Rear Seat Assembly >> Disassembly And Reassembly >> Notes

Disassembly And Reassembly: Notes

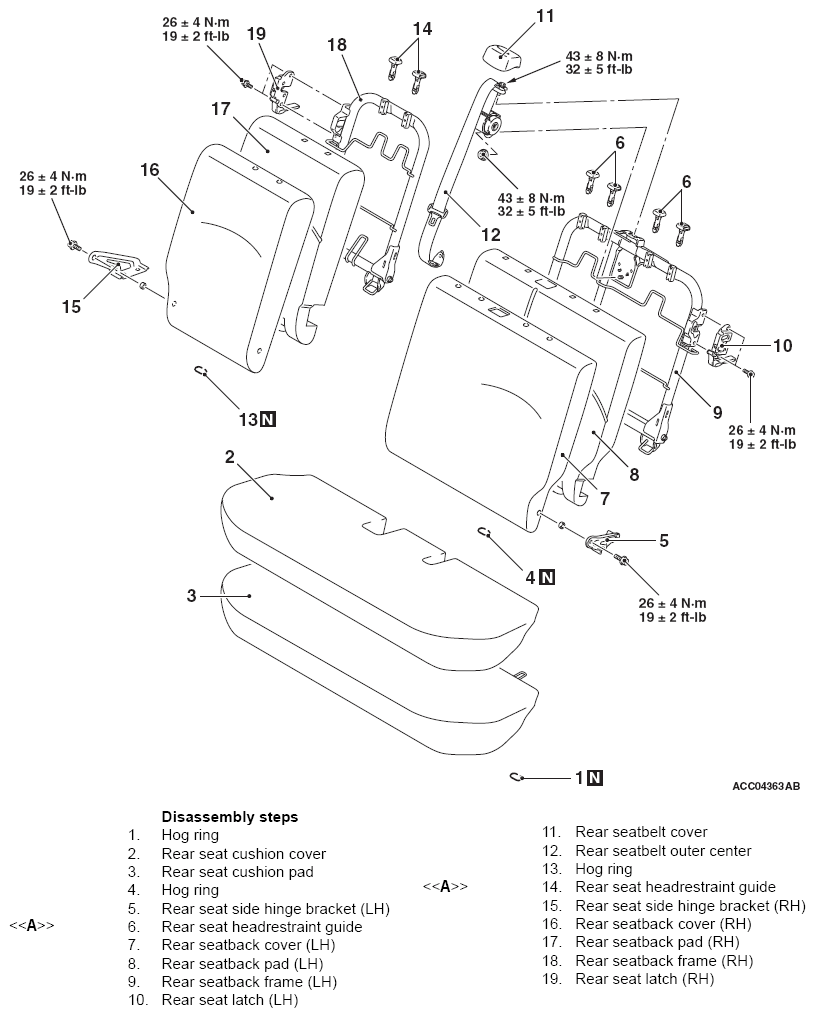

Fig 1: Disassembled View Of Seat Assembly With Torque Specifications
G09632535Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
