Removal And Installation

CAUTION:

When removing or installing the camshaft position sensor, be careful not to apply impact to the sensor.
Do not reuse the camshaft position sensor that has been dropped.

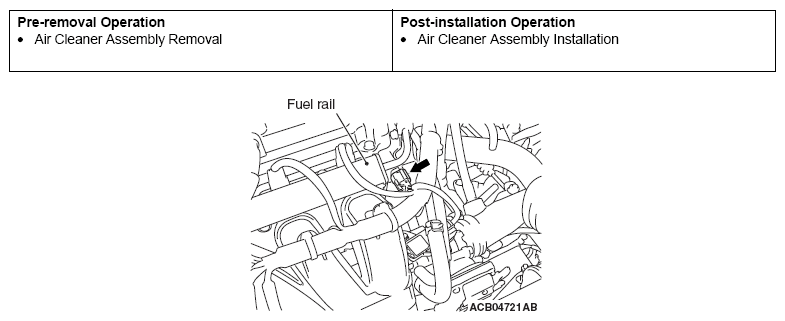

Fig 1: Locating Camshaft Position Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For the removal and installation procedures, refer to WATER HOSE AND PIPE .
