Mitsubishi
>>
2015
>>
Mirage RF
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Starter Motor Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

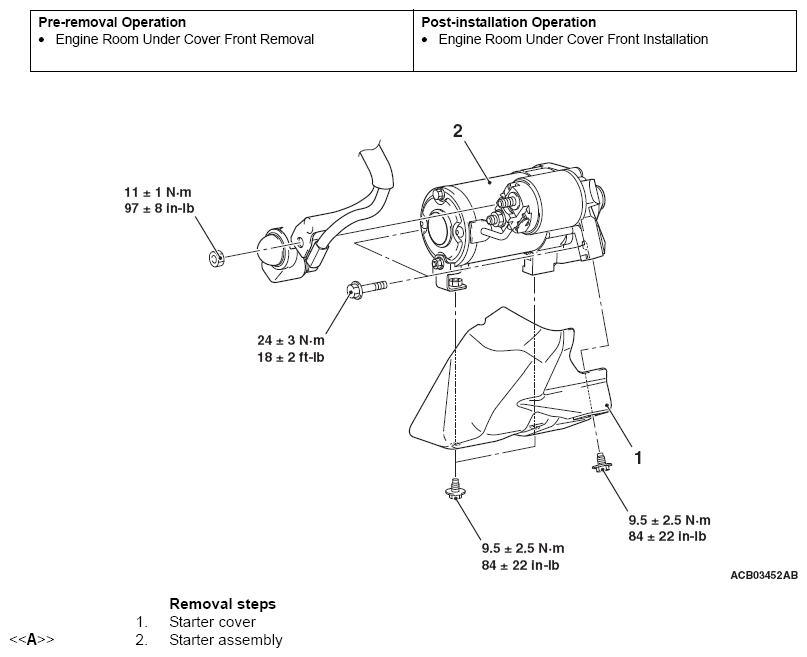

Fig 1: Removing/Installing Starter Motor Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
