Ignition Switch Check

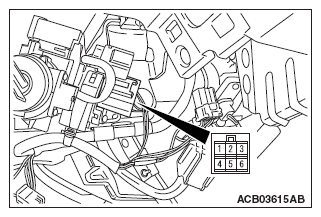

With the key reminder switch mounted to the vehicle, disconnect the ignition switch connection connector, and then perform the continuity check in each ignition key position.
| Ignition key position | Terminal number | Normal condition |
|---|---|---|
| LOCK | 1 - 2, 1 - 4, 1 - 5, 1 - 6 | No continuity |
| ACC | 1 - 6 | Continuity exists (2 ohms or less) |
| ON | 1 - 2 - 4 - 6 | Continuity exists (2 ohms or less) |
| START | 1 - 2 - 5 | Continuity exists (2 ohms or less) |
