Disassembly And Reassembly: Notes

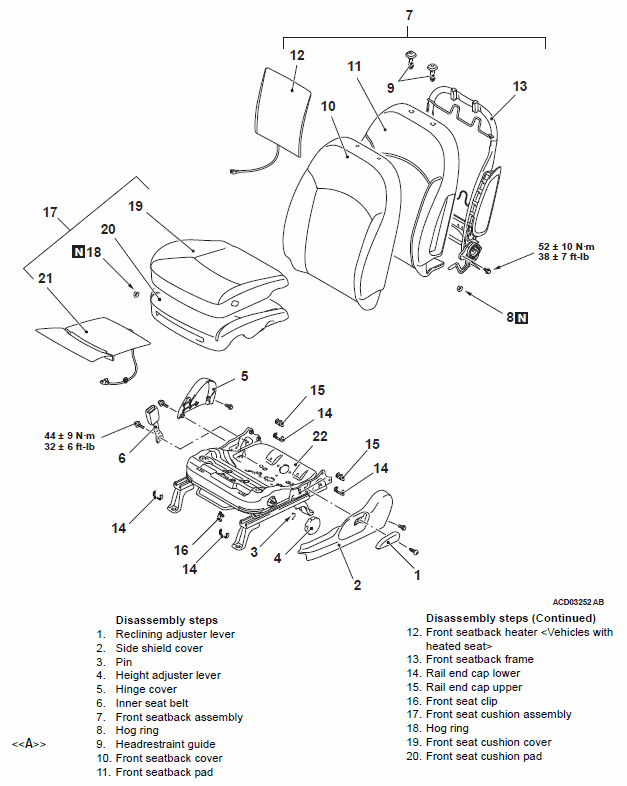

Fig 1: Disassembled View Of Seat Assembly With Torque Specifications (1 Of 2)
G00562267Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Disassembled View Of Seat Assembly With Torque Specifications (2 Of 2)
G00562268Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
