Removal And Installation: Notes

CAUTION:

Do not damage the trailing arm ball joint dust cover during maintenance. If it is damaged, replace the trailing arm ball joint dust cover (TRAILING ARM BALL JOINT ROTATION STARTING TORQUE CHECK ).
The part indicated by * is the bolt with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

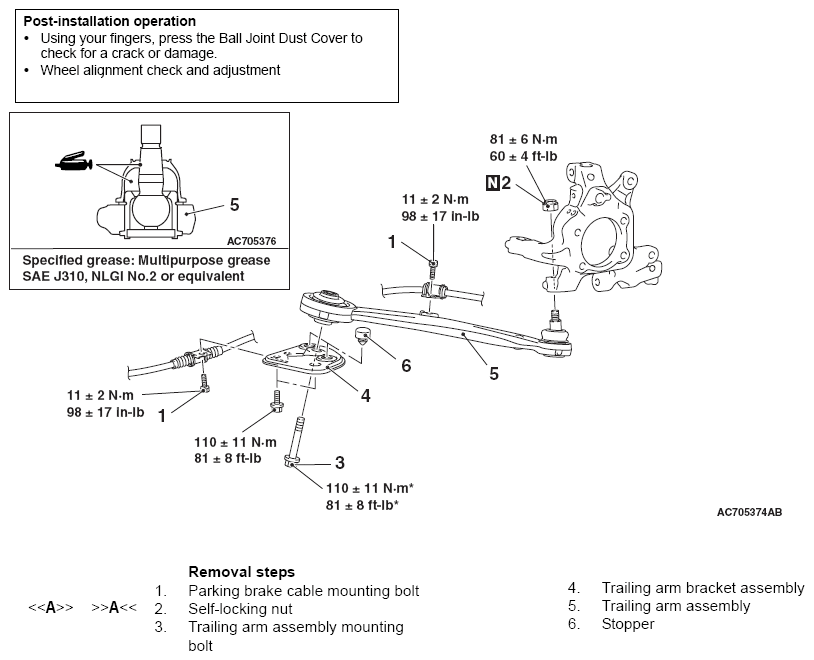

Fig 1: Removing/Installing Trailing Arm With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
