Disassembly And Assembly: Notes

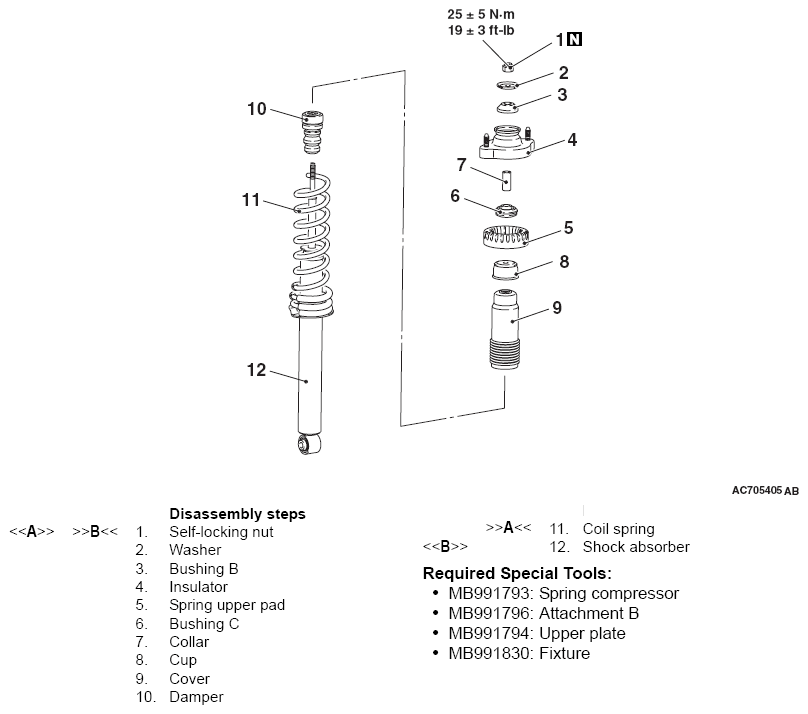

Fig 1: Disassembled View Of Shock Absorber Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991793: Spring compressor
• MB991796: Attachment B
• MB991794: Upper plate
• MB991830: Fixture
