Removal And Installation: Notes

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SERVICE PRECAUTIONS and INSPECTION .

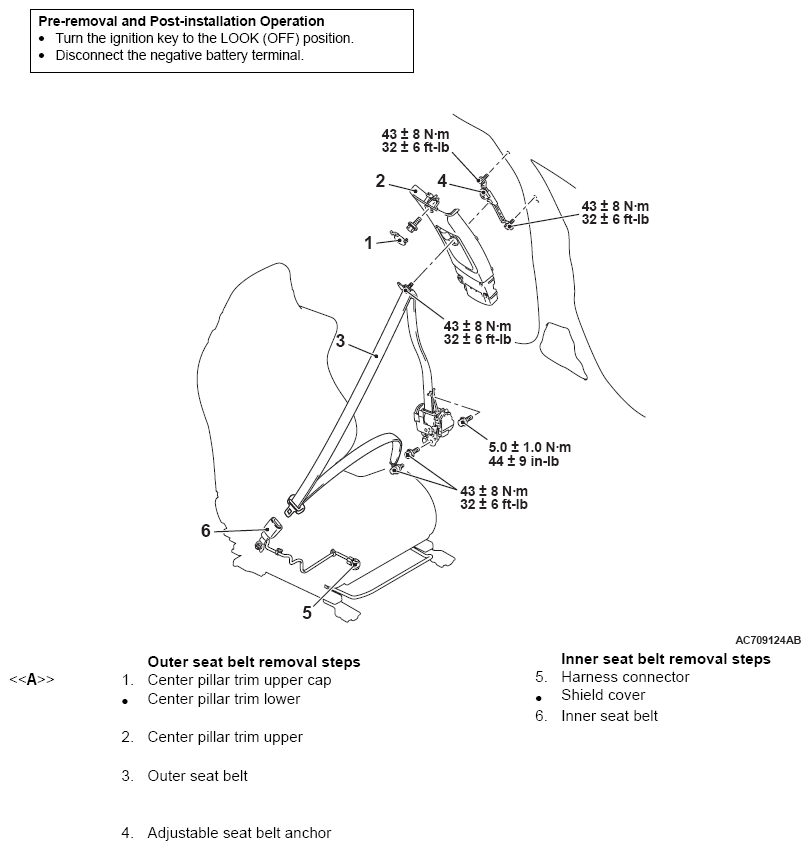

Fig 1: Removing/Installing Front Seat Belt With Torque Specifications
G09651738Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
