Tire Pressure Sensor: Removal

  1. Raise vehicle on a suitable support. Remove tire/wheel assembly from vehicle.
  2. Remove valve cap and core to deflate the tire.
  3. Once tire pressure is relieved, remove valve nut and the TPMS transmitter fall inside the tire.
  4. Place on tire changing machine. Break both tire beads, ensuring that tire pressure sensor remains in the bottom of the tire.
    NOTE: Damage to the TPMS transmitter may occur, be careful.
  5. Lubricate tire well, and remove outer side of tire.
  6. Reach inside tire and remove TPMS transmitter.
  7. Hold the TPMS transmitter and the seal washer. Slowly remove the seal washer, making sure the valve thread is not damage.
  8. Using a soft tool to prevent scratching valve, remove grommet from TPMS transmitter.
  9. Support the rear of the TPMS transmitter valve with your thumb. Clean the TPMS transmitter and valve stem
    NOTE: Damage to the TPMS transmitter may occur, be careful.

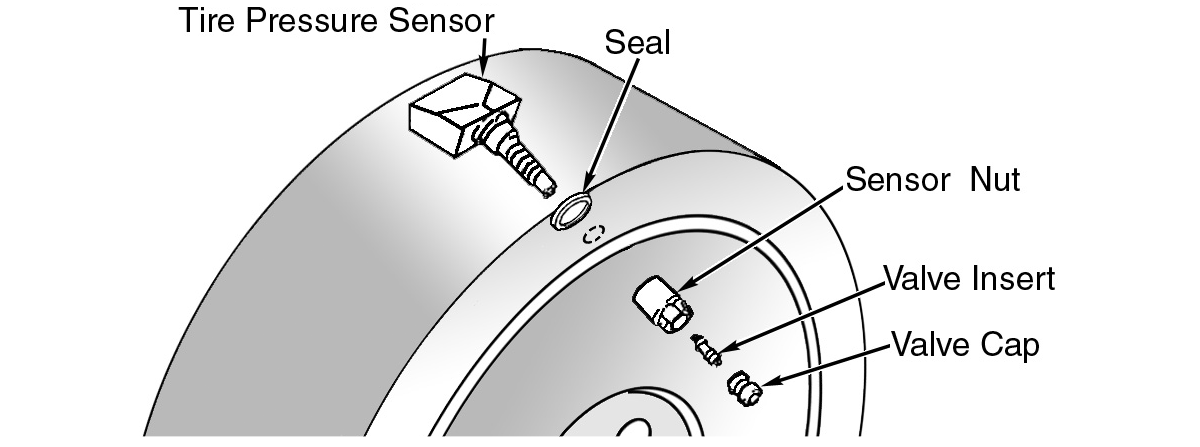

Fig 1: Exploded View Of Tire Pressure Sensor
G00225528Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
