Fuel Shut-Off Valve Check

Check that the flapper of the fuel shut-off valve opens and closes as shown in the illustration.

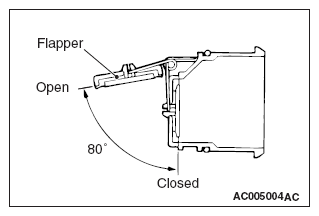

Fig 1: Checking Fuel Shut-Off Valve
G09640881Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
