Home >> Mitsubishi >> 2015 >> Lancer Evolution Final Edition >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior - Lancer Evolution >> Seat Assembly >> Rear Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

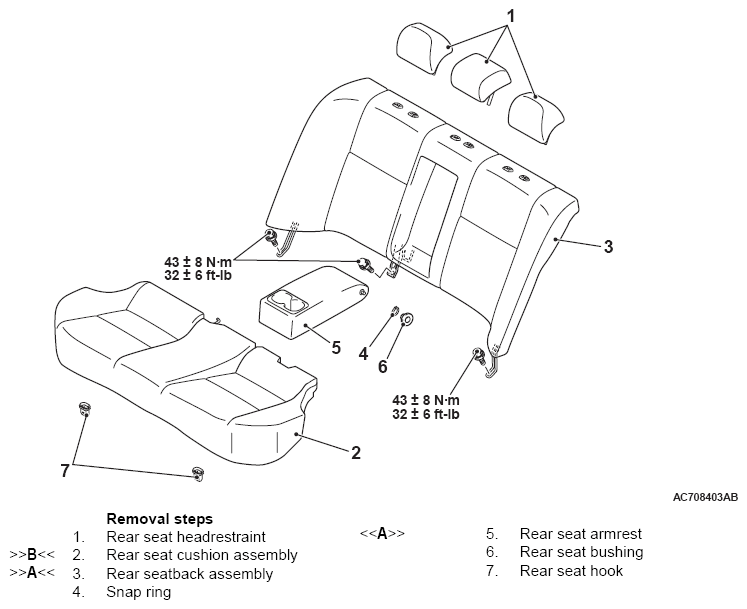

Fig 1: Removing/Installing Rear Seat Assembly Components With Torque Specifications

G09651733

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
