Removal And Installation

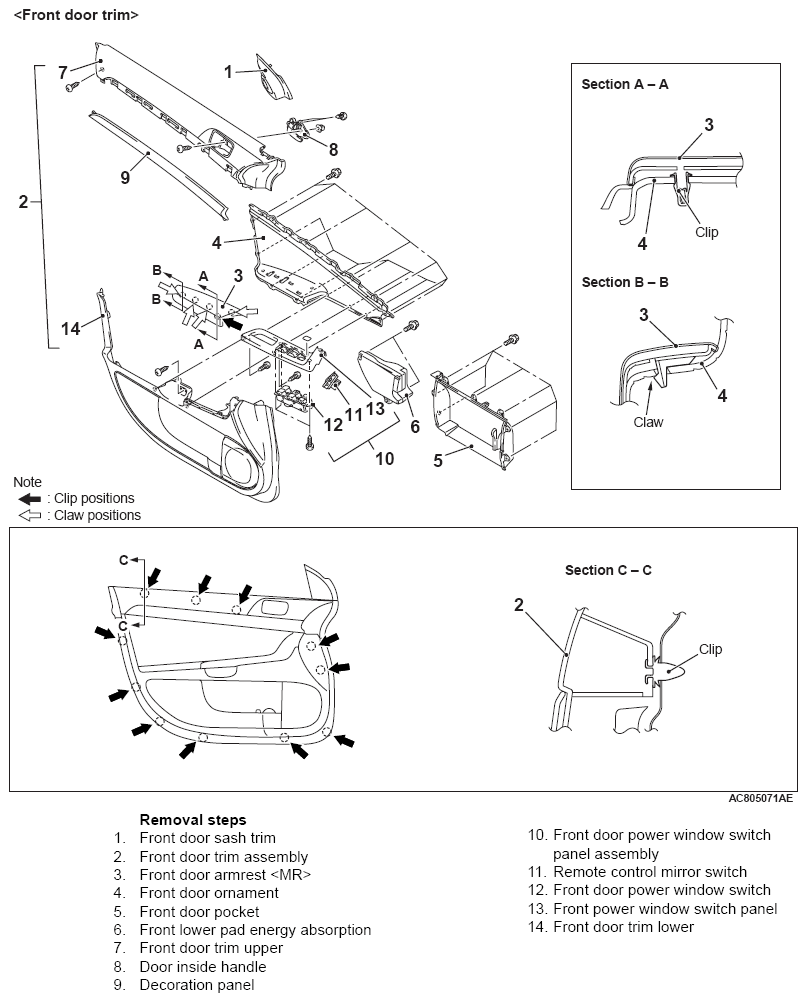

Fig 1: Removing/Installing Door Trim Components (Front Door Trim)
G09651713Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

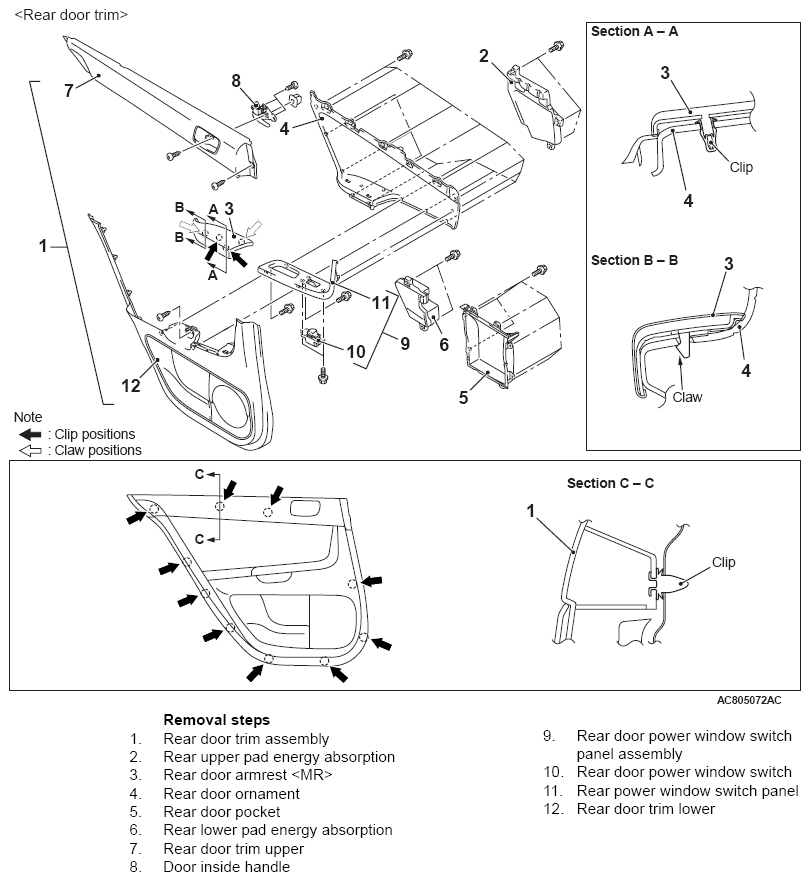

Fig 2: Removing/Installing Door Trim Components (Rear Door Trim)
G09651714Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
