Circuit Diagrams W/ Connector End Views - Lancer Evolution: Stoplight

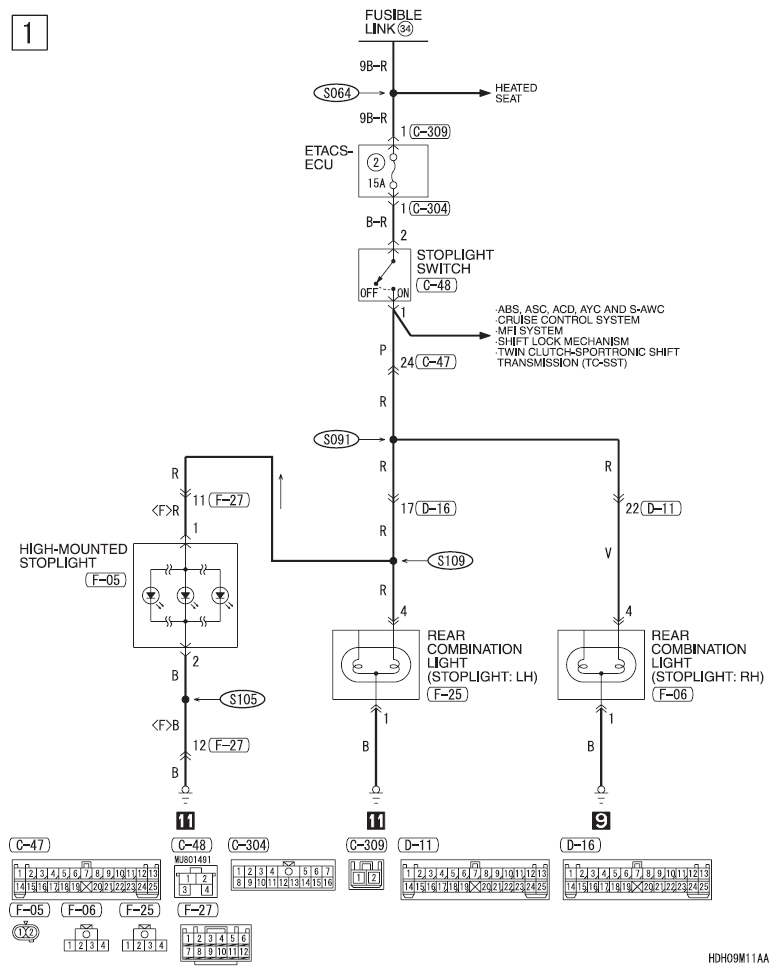

Fig 1: Stoplight - Circuit Diagram

G09620826

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
