Remote Controlled Mirror

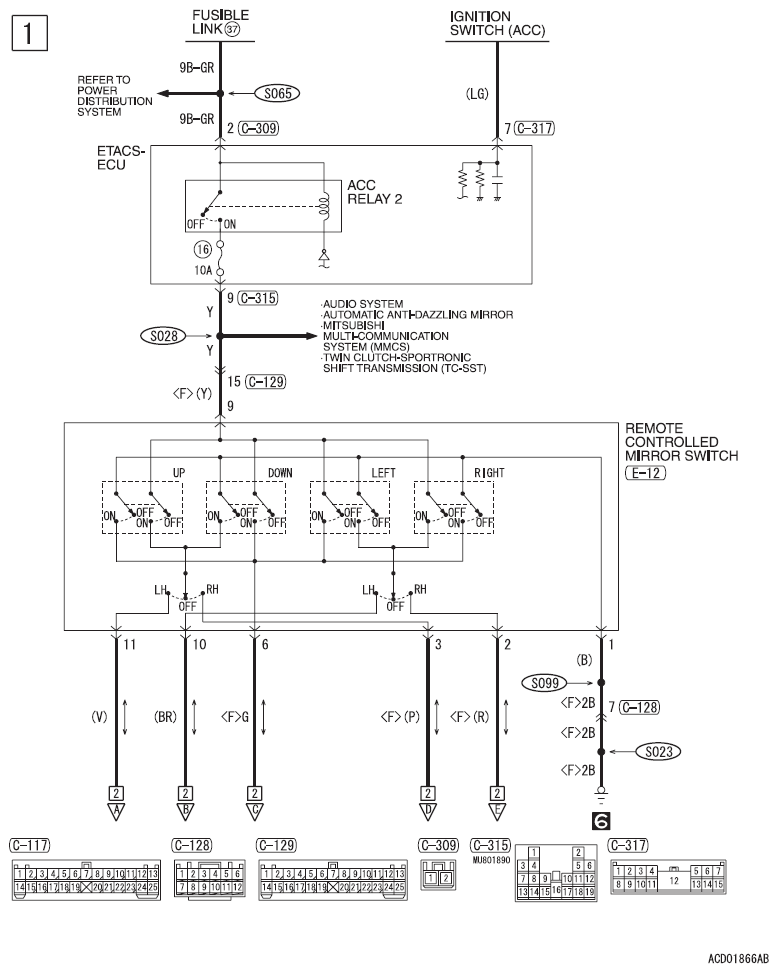

Fig 1: Remote Controlled Mirror - Circuit Diagram (1 Of 2)
G09620889Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

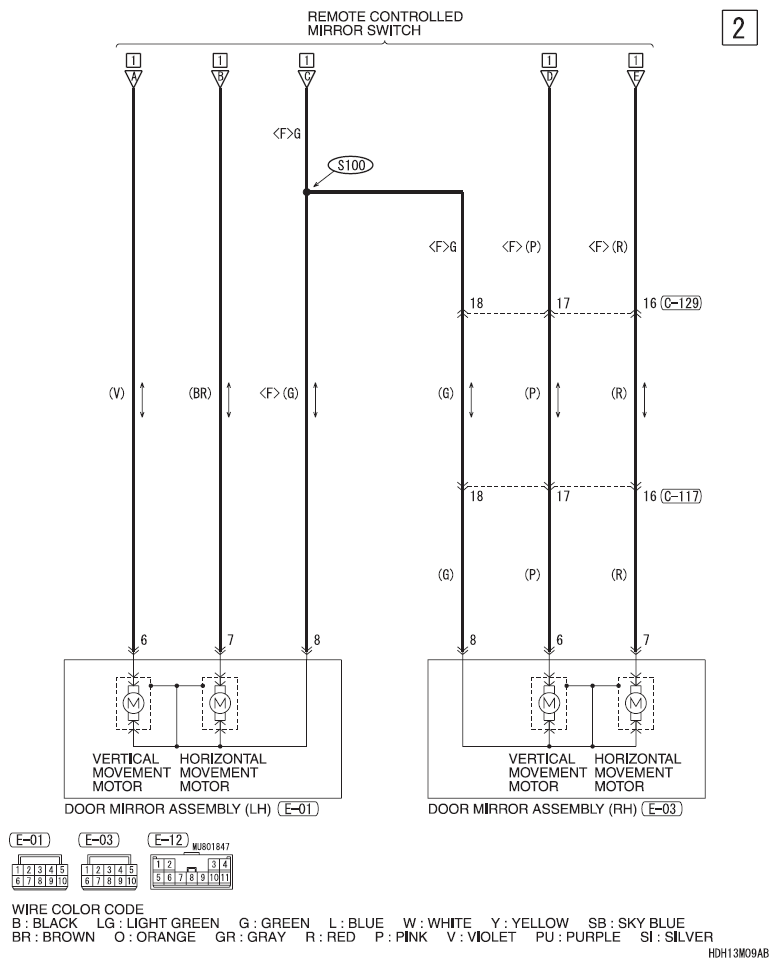

Fig 2: Remote Controlled Mirror - Circuit Diagram (2 Of 2)
G09620890Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
