Rear Window Defogger

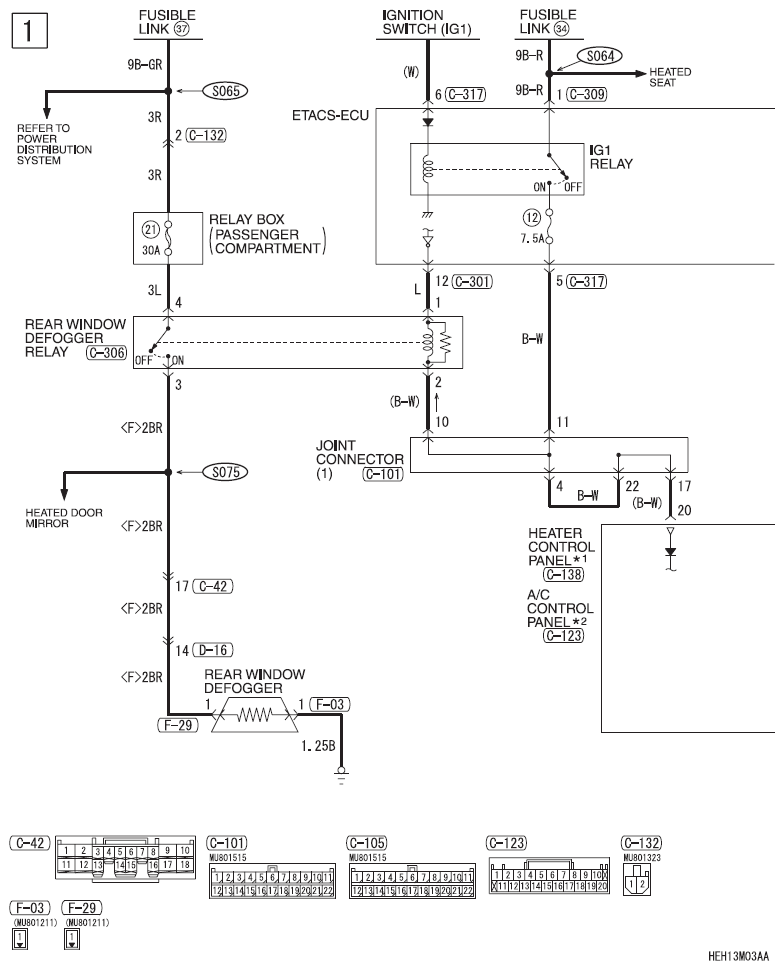

Fig 1: Rear Window Defogger - Circuit Diagram (1 Of 2)
G09620893Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

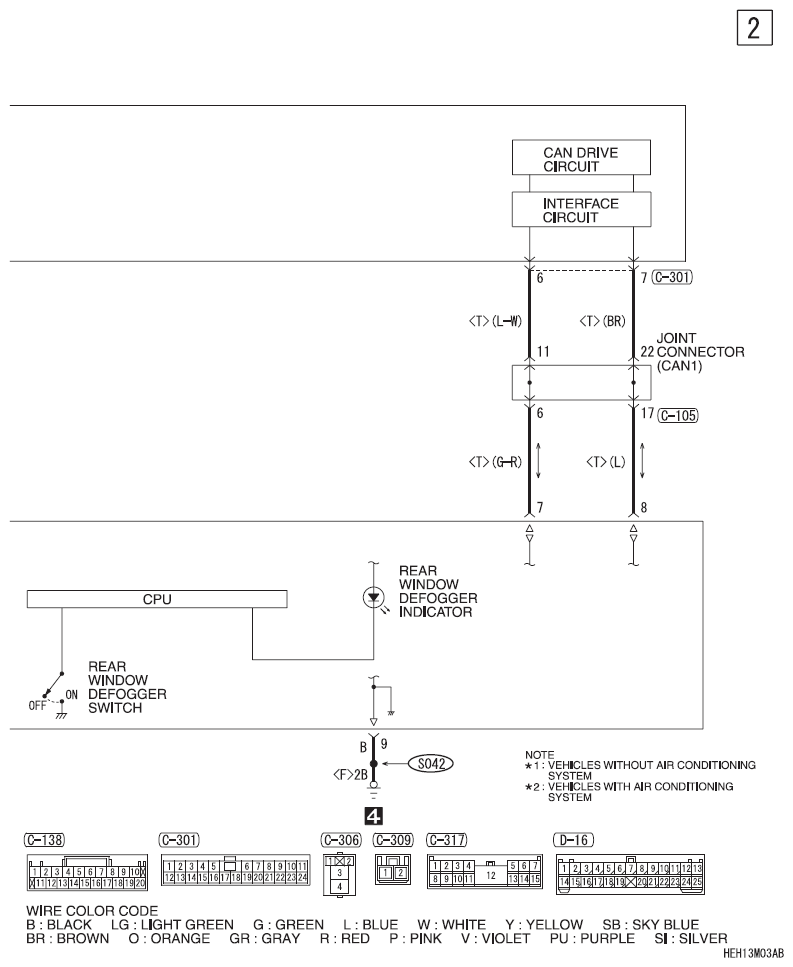

Fig 2: Rear Window Defogger - Circuit Diagram (2 Of 2)
G09620894Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
