Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the gearshift cable and select cable assembly.

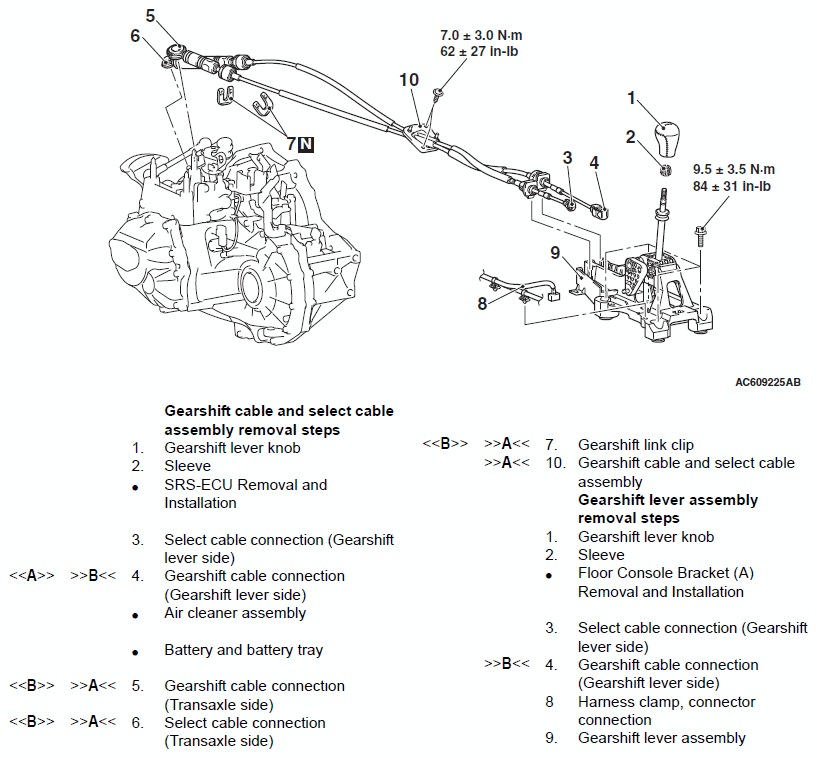

Fig 1: Removing/Installing Transaxle Control Components With Torque Specifications
G09625566Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
