Removal And Installation

WARNING: This page is about a different variant/trim than selected.

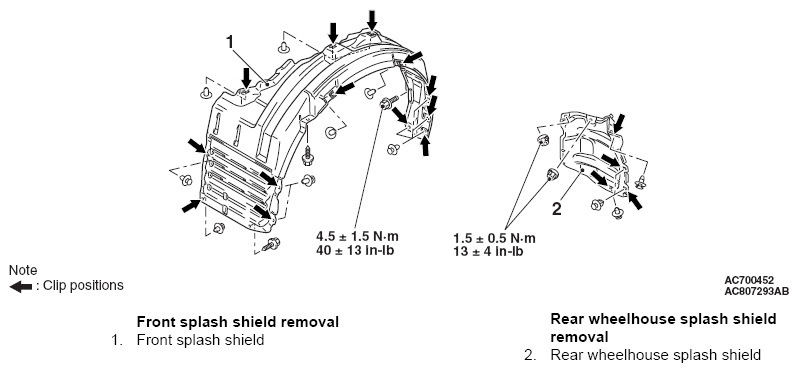

Fig 1: Removing/Installing Splash Shield Components With Torque Specifications
G09627510Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
