Removal And Installation: Notes

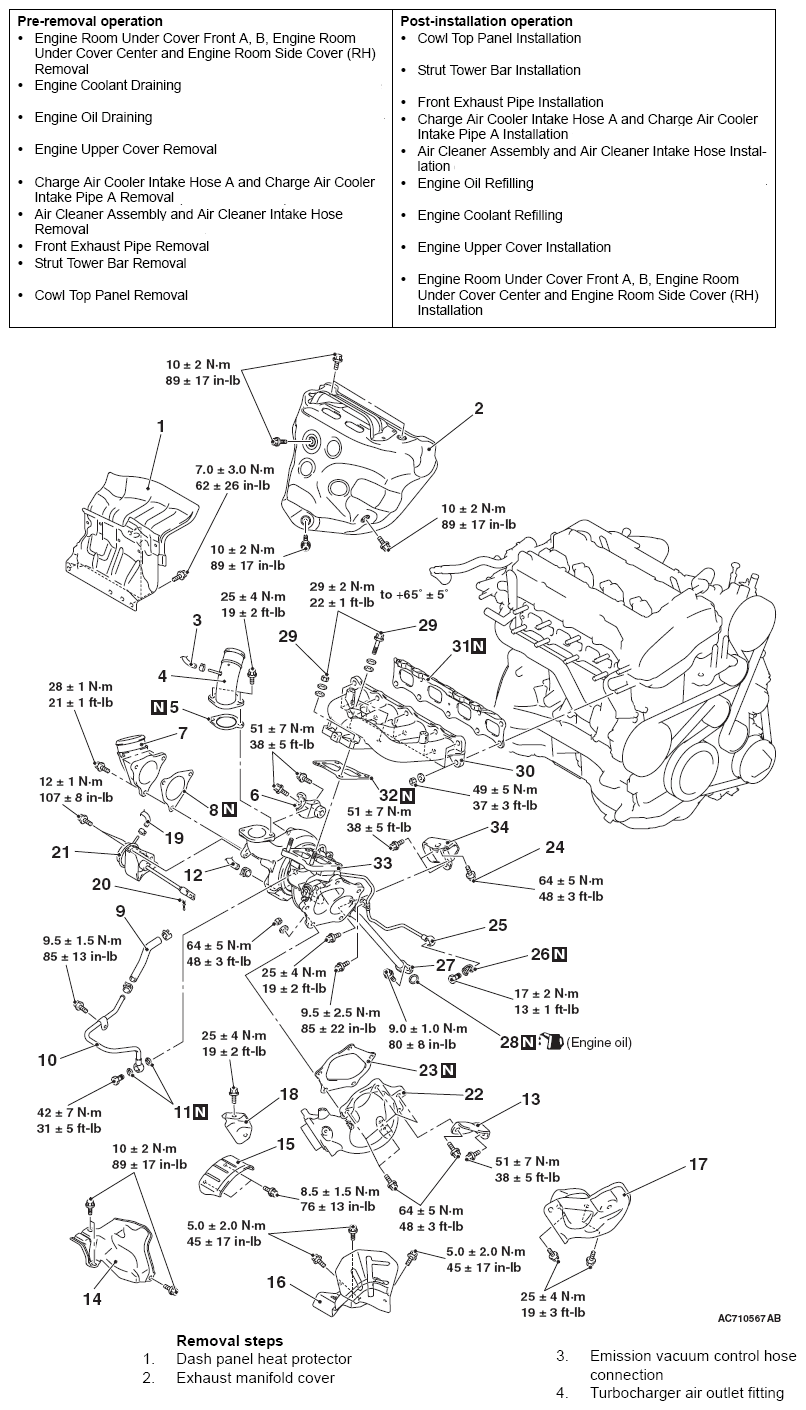

Fig 1: Removing/Installing Exhaust Manifold And Turbocharger Mounting Bolts With Torque Specification (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

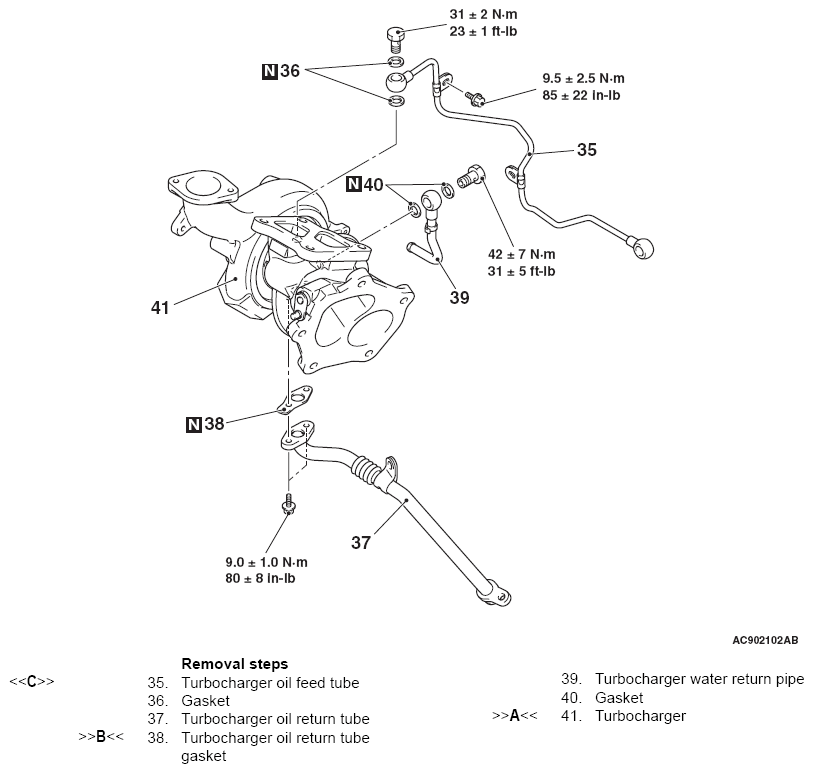

Fig 2: Removing/Installing Exhaust Manifold And Turbocharger Mounting Bolts With Torque Specification (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

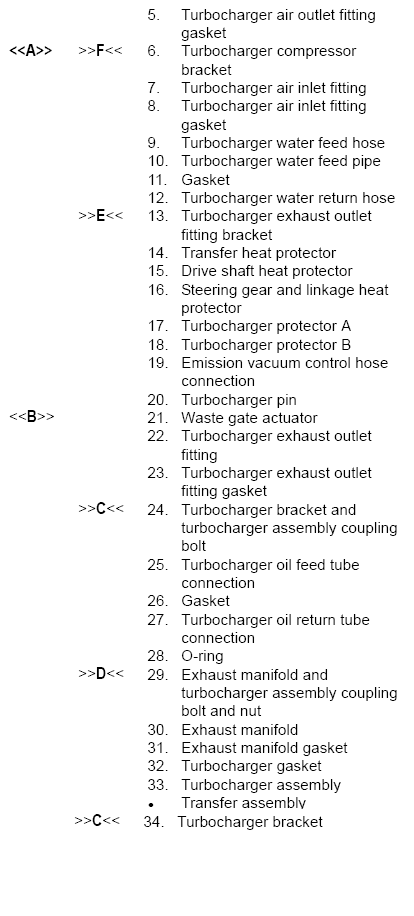

Fig 3: Removing/Installing Exhaust Manifold And Turbocharger Mounting Bolts With Torque Specification (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB992274: Palm Socket
• MB991614: Angle Gauge
