Front Wheel Alignment Check And Adjustment: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
After performing the front wheel alignment, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to
STEERING WHEEL SENSOR CALIBRATION
.)
- Before the wheel alignment measurement, maintain the front suspension, the steering system, the wheel and tires in good condition.
- Park the vehicle on a level surface, and position the front wheel in the straight-ahead position to measure the wheel alignment.
TOE-IN
Standard value: 0 ± 2 mm (0 ± 0.08 inch)

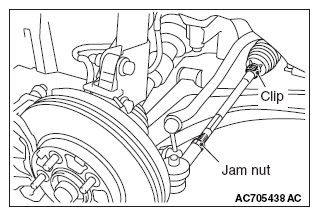

- Loosen the jam nut with the tie-rod clip removed, and then perform the adjustment by turning the tie-rod left/right at the same degree in the opposite direction.NOTE: The toe moves to the outside by turning the tie-rod left to the forward direction, and right to the reverse direction.
- After adjustment, check that the steering angle is within the standard range using the turning radius gauge. (Refer to ON-VEHICLE SERVICE .)
