Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

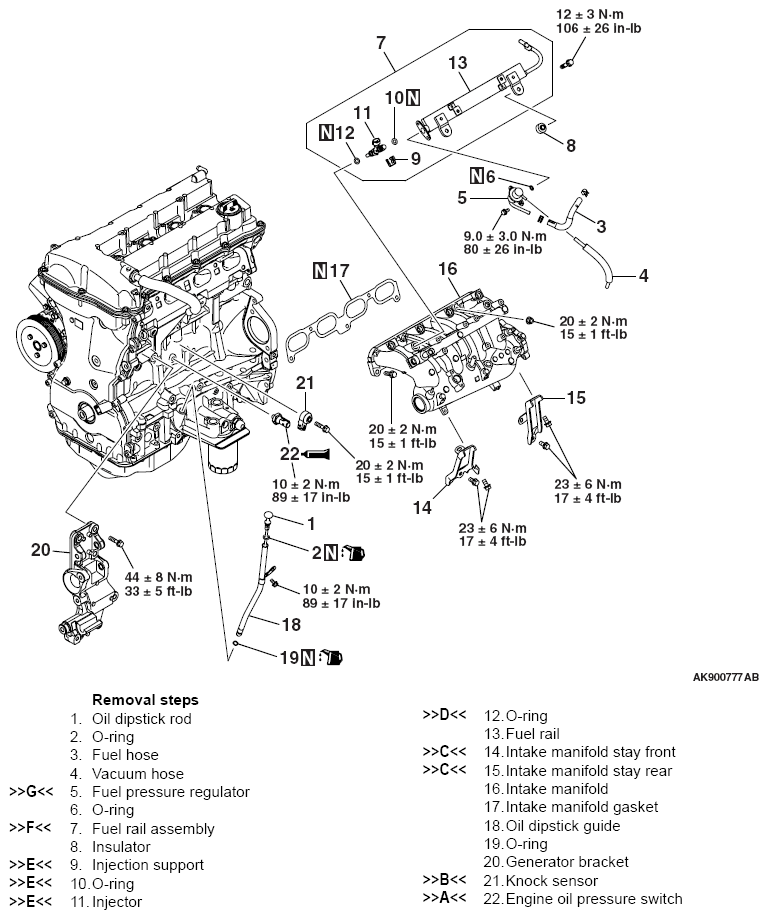

Fig 1: Removing/Installing Intake Manifold Components With Torque Specifications
G09639817Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
