Special Tools

WARNING: This page is about a different variant/trim than selected.
Tool Tool number and name Supersession Application
G09639630
 MB992080
Belt tension meter set
  1. MB992081

    Belt tension meter

  2. MB992082

    Mic assembly

 Tool not available Drive belt tension (frequency) measurement

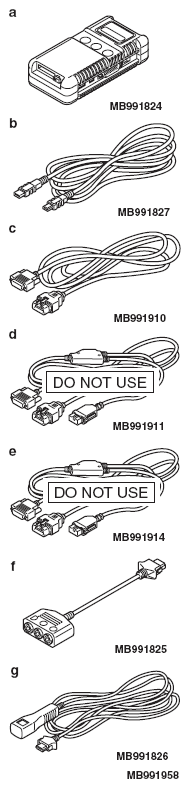

G09639631
 MB991958
Scan tool (M.U.T.-III sub assembly)
  1. MB991824

    Vehicle communication interface (V.C.I.)

  2. MB991827

    M.U.T.-III USB cable

  3. MB991910

    M.U.T.-III main harness A (Vehicles with CAN communication system)

  4. MB991911

    M.U.T.-III main harness B (Vehicles without CAN communication system)

  5. MB991914

    M.U.T.-III main harness C (for Chrysler models only)

  6. MB991825

    M.U.T.-III adapter harness

  7. MB991826

    M.U.T.-III trigger harness

 MB991824-KIT
NOTE: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
  • Standard ignition timing check
  • Idle speed check
G09639632
 MB992278
Belt tension release wrench		   Auto-tensioner tension release
G09639633
 MB990767
Front hub and flange yoke holder		 MB990767-01 Holding the crankshaft pulley
G09639634
 MD998719
Pin		 MIT308239
G09639635
 MB992103
Chain tension release bar		 - Camshaft and camshaft sprocket assembly (exhaust side) removal
G09639636
 MD998772
Valve spring compressor		 General service tool Valve spring compression
G09639637
 MB992090
Retainer holder attachment		 -
G09639638
 MB992089
Retainer holder C		 -
G09639639
 MB992085
Valve stem seal pliers		 - Valve stem seal removal
G09639640
 MD998737
Valve stem seal installer		 MD998737-01 Valve stem seal press-fitting
G09639641
 MD998727
Oil pan FIPG cutter		 MD998727-01 Oil pan removal
G09639642
 MB991883
Flywheel stopper		 General service tool Supporting the flywheel
G09639643
 MB991448
Bush remover and installer base		 MB991448-01 Press-fitting the crankshaft front oil seal
G09639644
 MB992201
Engine hanger plate		 - Support of engine and transaxle assembly
G09639645
 MB991454
Engine hanger balancer		 MZ203827-01 Support of engine assembly
G09639646
 MB991895
Engine hanger		 Tool not available
G09639647
 MB991928
Engine hanger
  1. MB991929

    Joint (50) x 2

  2. MB991930

    Joint (90) x 2

  3. MB991931

    Joint (140) x 2

  4. MB991932

    Foot (standard) x 4

  5. MB991933

    Foot (short) x 2

  6. MB991934

    Chain and hook assembly

 Tool not available
