Removal And Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

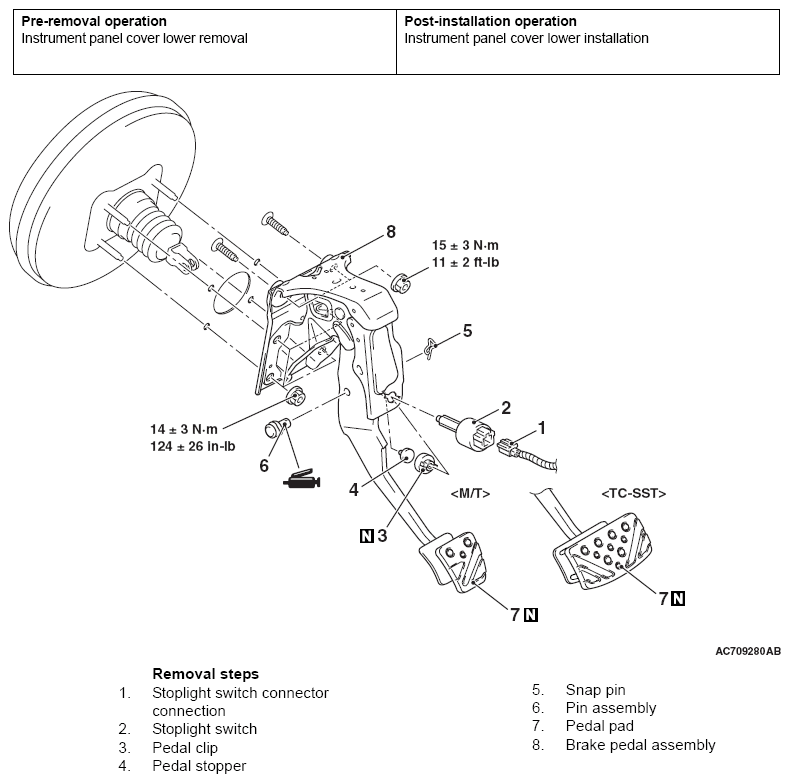

Fig 1: Removal/Installation Of Brake Pedal Components With Torque Specification
G09650790Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
