Section 34 (Front Axle - Lancer Evolution)
>>
Driveshaft Assembly
>>
Disassembly And Assembly
>>
Lubrication Points
Lubrication Points
WARNING:
This page is about a different variant/trim than selected.

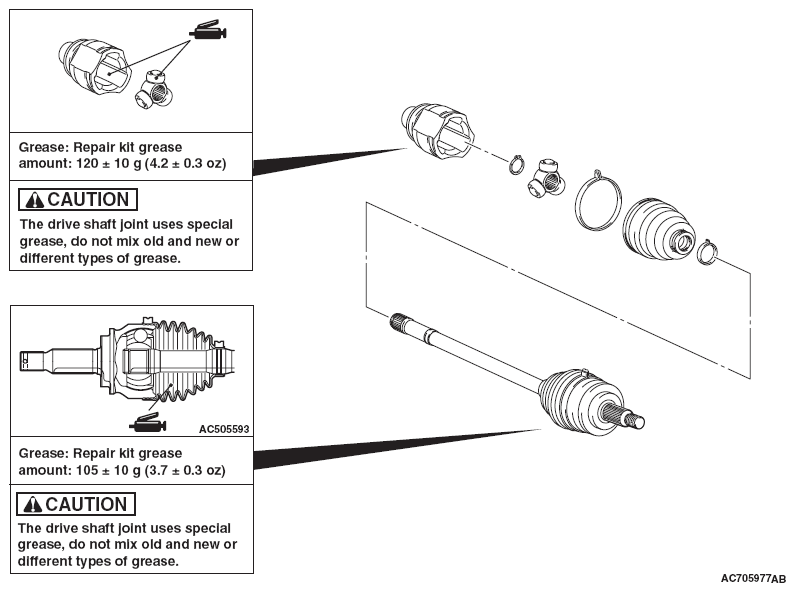

Fig 1: Driveshaft Joint Lubrication Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
