TPMS Transmitter Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Be careful not to damage the TPMS transmitter.
  1. Place on tire changing machine and break both tire beads ensuring that the TPMS transmitter remains in the bottom of the tire.
  2. Lubricate tire well and remove outer side of the tire.
  3. Reach inside the tire and remove the TPMS transmitter.
  4. Remove tire from rim using proper tire changing equipment procedures.

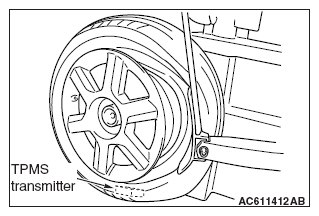

    Fig 1: Identifying TPMS Transmitter
    G09627985Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
