Vehicles Without Aluminum Pedal Pad (2016)

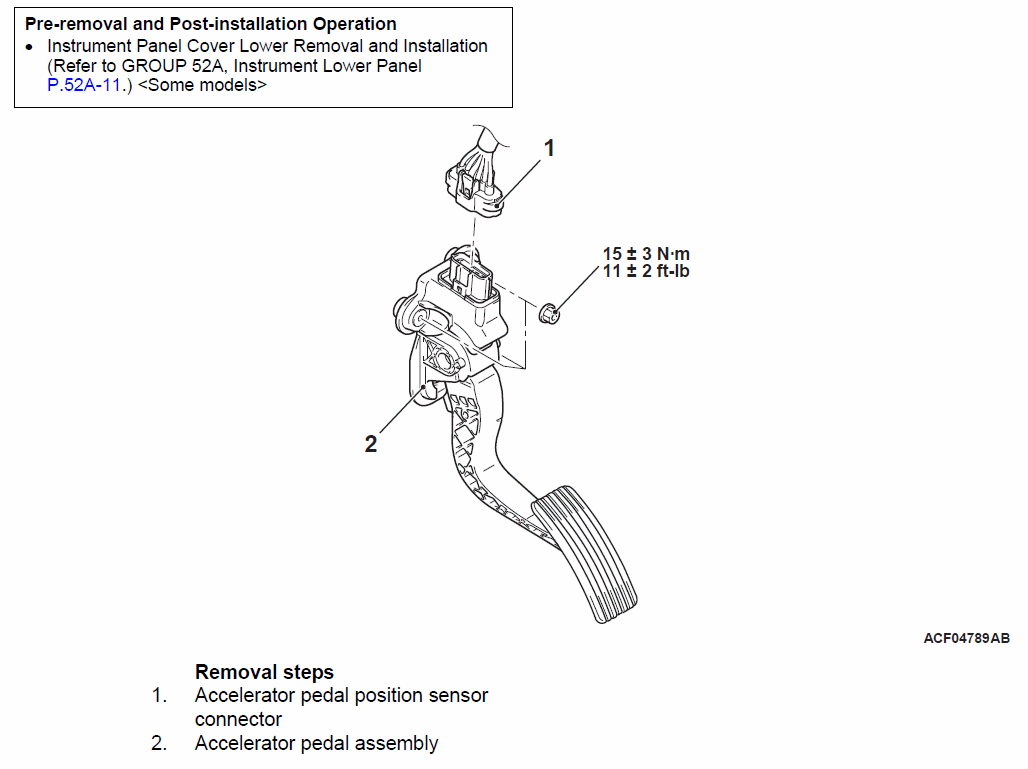

Fig 1: Removing/Installing Accelerator Pedal Components With Torque Specification - Vehicles Without Aluminum Pedal Pad (2016)
G00563165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
