Engine Control System - Lancer
>>
Accelerator Pedal
>>
Vehicles With Aluminum Pedal Pad
Vehicles With Aluminum Pedal Pad

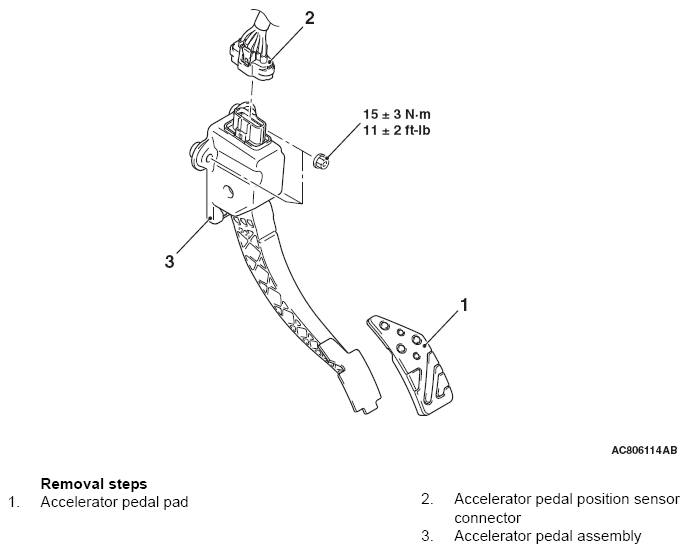

Fig 1: Removing/Installing Accelerator Pedal Components With Torque Specification - Vehicles With Aluminum Pedal Pad
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
