Brush Holder

Push the brush into the brush holder to make sure that the spring is working on the brush.

If the spring is not working, replace the brush holder.

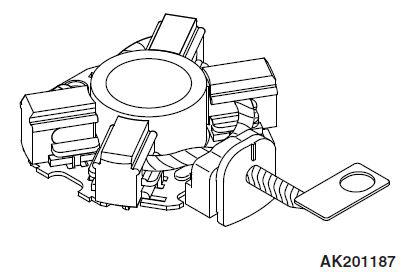

Fig 1: Identifying Brush Holder
G05375445Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
