Engine Compartment

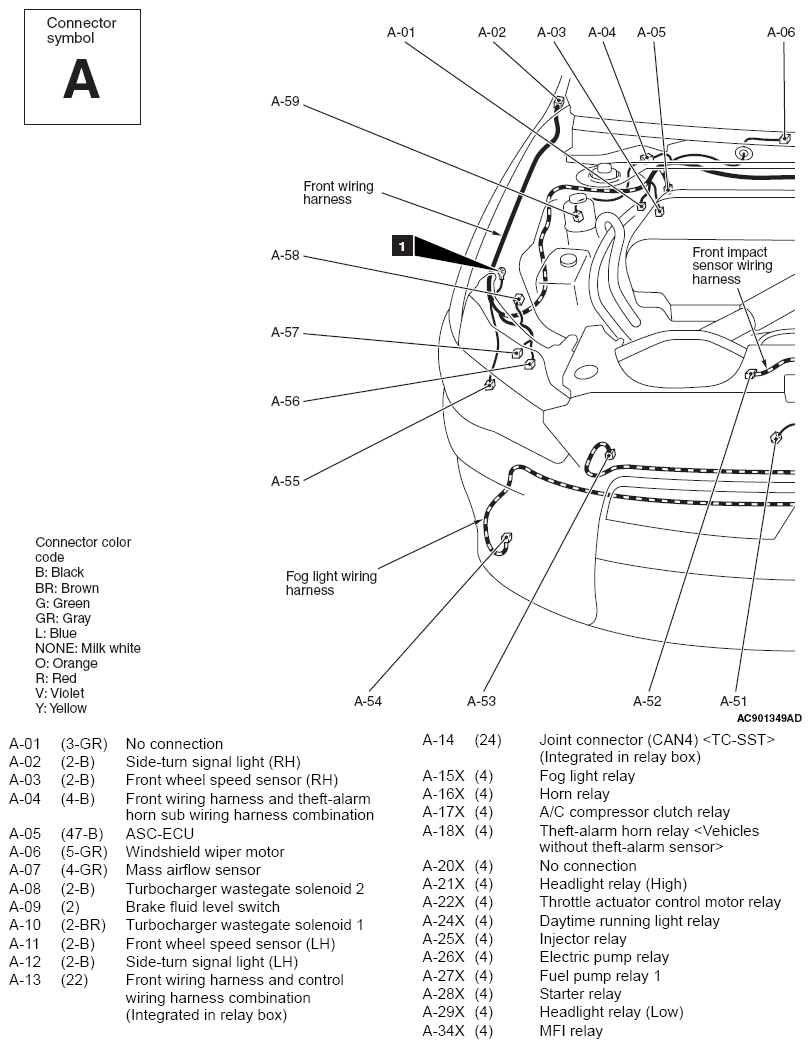

Fig 1: Engine Compartment Connectors Location (1 Of 2)
G09620631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

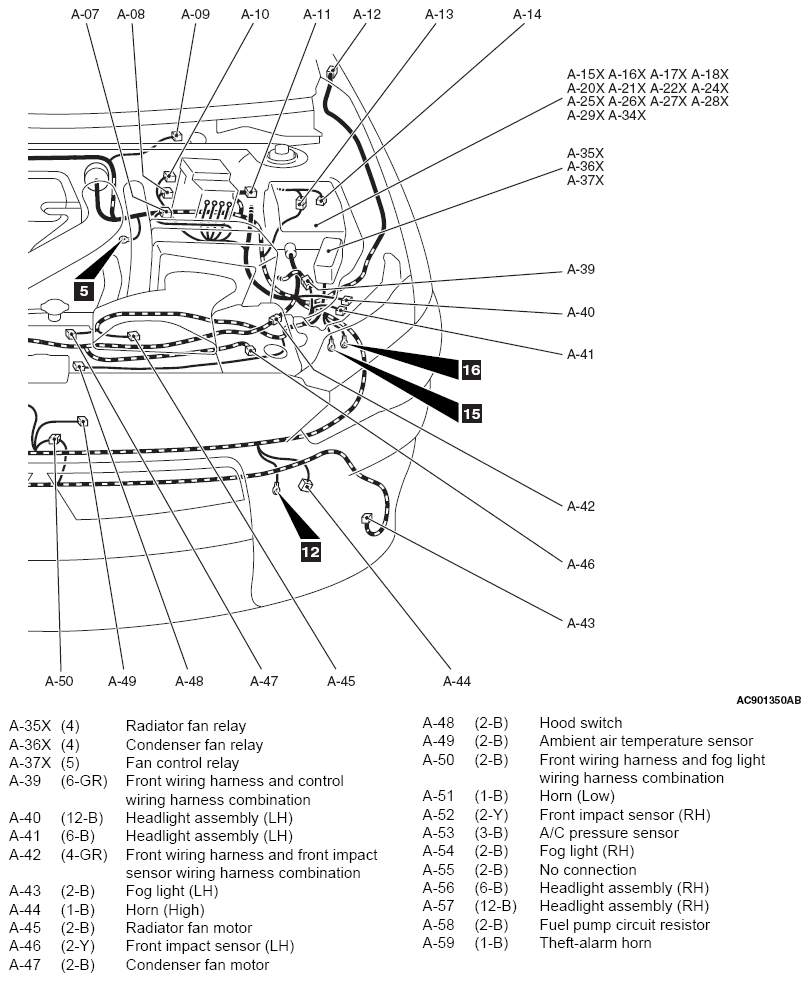

Fig 2: Engine Compartment Connectors Location (2 Of 2)
G09620632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
