Home >> Mitsubishi >> 2015 >> Lancer Evolution Final Edition >> Repair and Diagnosis >> Electrical >> Body Electrical >> Splice Locations - Lancer Evolution >> Door

Splice Locations - Lancer Evolution: Door

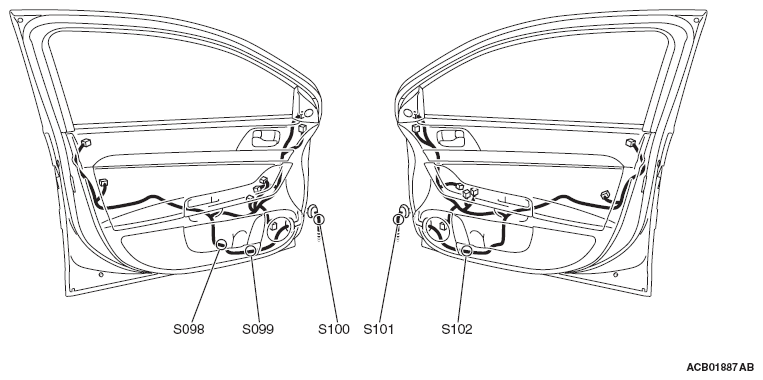

Fig 1: Door Splice Locations

G09620654

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
