Removal And Installation: Battery

WARNING: When installing the battery, securely connect the exhaust battery cover hose.

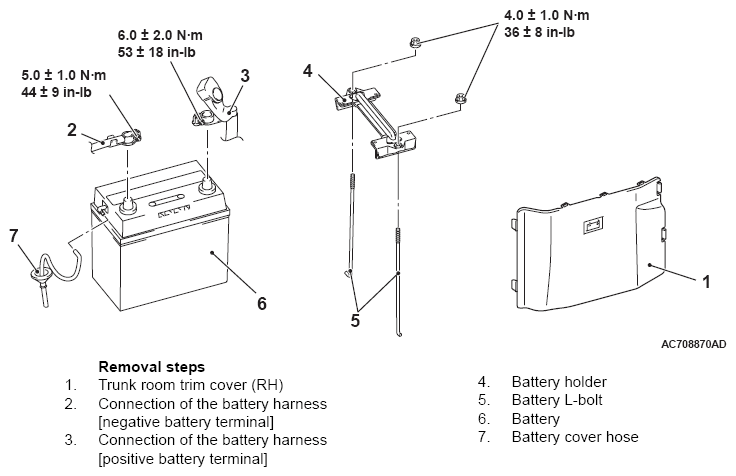

Fig 1: Removing/Installing Battery System Components With Torque Specification
G09652380Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
