Home >> Mitsubishi >> 2015 >> Lancer Evolution Final Edition >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass - Lancer Evolution >> Rear Window Glass >> Removal And Installation >> Notes

Removal And Installation: Notes

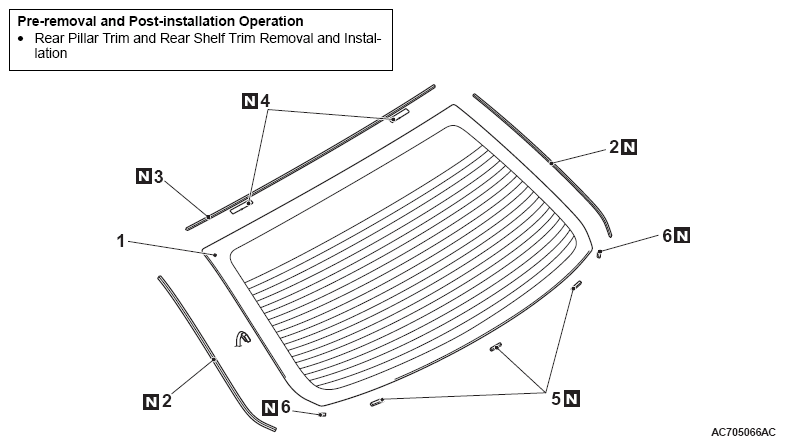

Fig 1: Removing/Installing Rear Window Glass Trim
G09651062Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

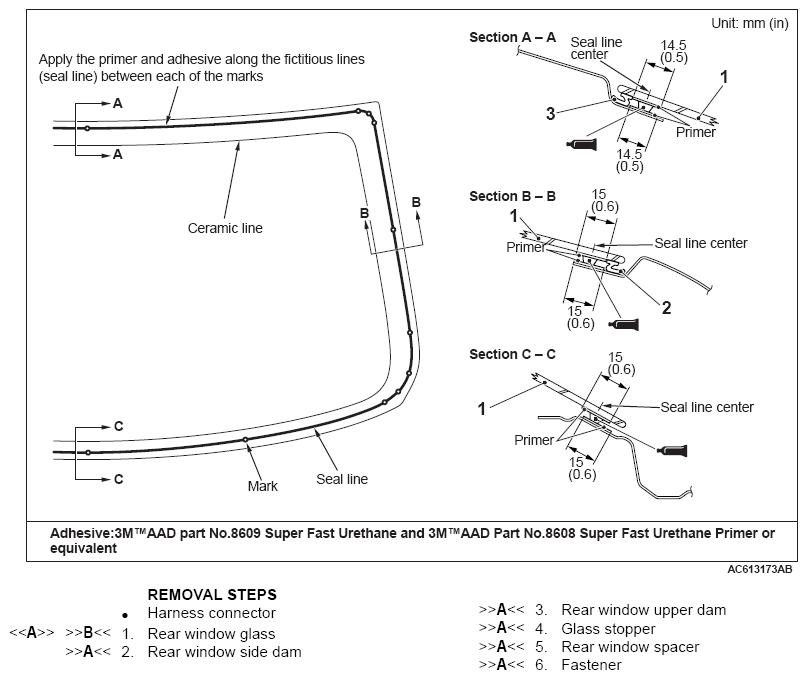

Fig 2: Removing/Installing Rear Window Glass Sealant Area
G09651063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
